SDO HMI 2011-12-12 06:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.09 | 18.65 | 2.28 | 10.36 | 12.69 | 40.98 | 23.55 | 300.31 | 0.4539 | 655.5 | 523.4 | |
|
previous
or next observation for the same group /

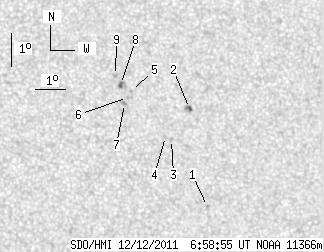

back to the solar disc SDO HMI 2011-12-12 06:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.62 | 0.00 | 0.90 | 9.78 | 42.66 | 25.23 | 292.94 | 0.4581 | 807.0 | 624.7 | |
| 1.96 | 3.32 | 1.10 | 1.86 | 12.73 | 42.34 | 24.91 | 299.06 | 0.4720 | -873.7 | -815.1 | |
| 0.00 | 1.53 | 0.00 | 0.85 | 11.79 | 41.64 | 24.22 | 297.87 | 0.4562 | 826.0 | 546.7 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 11.88 | 41.45 | 24.03 | 298.23 | 0.4542 | 792.0 | 559.9 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 13.27 | 40.47 | 23.04 | 301.95 | 0.4509 | 852.0 | 586.3 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 13.06 | 40.31 | 22.89 | 301.70 | 0.4472 | 773.0 | 642.0 | |
| 0.00 | 2.30 | 0.00 | 1.27 | 12.88 | 40.20 | 22.77 | 301.46 | 0.4443 | 1092.0 | 873.3 | |
| 2.13 | 4.43 | 1.18 | 2.45 | 13.45 | 40.12 | 22.70 | 302.67 | 0.4477 | 935.4 | 655.6 | |
| 0.00 | 2.13 | 0.00 | 1.18 | 13.73 | 39.99 | 22.56 | 303.35 | 0.4481 | 798.0 | 668.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
