SDO HMI 2011-12-12 06:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.50 | 21.21 | 7.90 | 51.88 | 21.39 | 300.20 | -77.22 | 68.00 | 0.9788 | 3.6 | -52.2 | |
|
previous
or next observation for the same group /

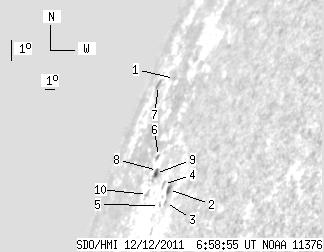

back to the solar disc SDO HMI 2011-12-12 06:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 5.47 | 23.62 | 298.32 | -79.11 | 65.91 | 0.9863 | 259.0 | 215.0 | |
| 0.00 | 4.43 | 0.00 | 8.46 | 20.02 | 303.59 | -73.84 | 69.09 | 0.9672 | -399.0 | -368.6 | |
| 0.00 | 1.28 | 0.00 | 2.42 | 19.61 | 303.76 | -73.66 | 69.50 | 0.9663 | -403.0 | -428.8 | |
| 0.00 | 2.30 | 0.00 | 4.64 | 20.19 | 302.78 | -74.64 | 69.00 | 0.9705 | -128.0 | -80.8 | |
| 0.00 | 0.94 | 0.00 | 1.84 | 19.52 | 303.18 | -74.24 | 69.65 | 0.9686 | -206.0 | -188.0 | |
| 0.77 | 1.53 | 1.80 | 3.59 | 21.10 | 300.77 | -76.65 | 68.27 | 0.9782 | 228.4 | 161.4 | |
| 0.00 | 3.32 | 0.00 | 13.02 | 23.43 | 295.65 | -81.77 | 66.30 | 0.9924 | 217.0 | 83.1 | |
| 0.94 | 3.75 | 2.09 | 8.39 | 20.65 | 301.35 | -76.07 | 68.67 | 0.9760 | -130.0 | 81.8 | |
| 1.79 | -8.00 | 4.01 | -8.00 | 20.55 | 301.23 | -76.19 | 68.78 | 0.9764 | 187.7 | 999999 | |
| 0.00 | 1.79 | 0.00 | 4.05 | 19.89 | 301.17 | -76.26 | 69.46 | 0.9764 | -178.0 | -37.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
