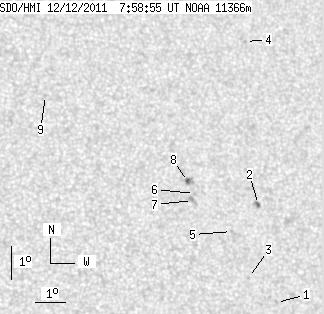

SDO HMI 2011-12-12 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.75 | 18.24 | 2.09 | 10.17 | 13.10 | 40.70 | 23.82 | 300.87 | 0.4610 | 635.7 | 443.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-12 07:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.57 | 9.78 | 42.71 | 25.83 | 292.50 | 0.4667 | 579.0 | 576.2 | |
| 1.19 | 2.90 | 0.67 | 1.63 | 12.73 | 42.39 | 25.52 | 298.52 | 0.4802 | -880.1 | -833.7 | |
| 0.00 | 1.02 | 0.00 | 0.57 | 10.52 | 41.85 | 24.97 | 294.68 | 0.4586 | 615.0 | 483.4 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 17.73 | 42.61 | 25.73 | 307.07 | 0.5203 | 773.0 | 600.4 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 11.91 | 41.41 | 24.53 | 297.83 | 0.4613 | 680.0 | 440.5 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 13.06 | 40.30 | 23.42 | 301.15 | 0.4543 | 877.0 | 696.6 | |
| 0.00 | 3.75 | 0.00 | 2.08 | 12.84 | 40.21 | 23.33 | 300.82 | 0.4515 | 964.0 | 786.6 | |
| 2.56 | 5.88 | 1.42 | 3.27 | 13.42 | 40.10 | 23.22 | 302.05 | 0.4545 | 862.4 | 549.3 | |
| 0.00 | 1.02 | 0.00 | 0.56 | 16.03 | 35.72 | 18.84 | 312.50 | 0.4228 | 656.0 | 486.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
