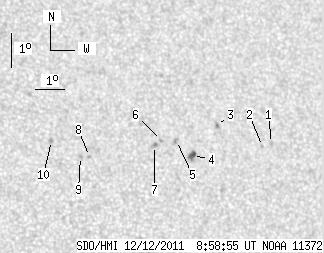

SDO HMI 2011-12-12 08:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.39 | 21.81 | 1.37 | 12.42 | 7.58 | 44.79 | 28.46 | 286.56 | 0.4944 | -303.6 | -316.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-12 08:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 1.11 | 7.65 | 48.27 | 31.94 | 285.03 | 0.5450 | 35.0 | -154.7 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 7.56 | 47.95 | 31.61 | 285.00 | 0.5401 | -669.0 | -497.4 | |
| 0.00 | 2.56 | 0.00 | 1.48 | 8.18 | 46.40 | 30.07 | 286.84 | 0.5202 | -916.0 | -750.5 | |
| 2.39 | 5.03 | 1.37 | 2.88 | 7.28 | 45.51 | 29.17 | 285.56 | 0.5039 | -1005.8 | -803.9 | |
| 0.00 | 2.21 | 0.00 | 1.26 | 7.72 | 44.99 | 28.66 | 286.67 | 0.4982 | -656.0 | -613.2 | |
| 0.00 | 1.53 | 0.00 | 0.87 | 7.72 | 44.48 | 28.15 | 286.93 | 0.4907 | -808.0 | -631.8 | |
| 0.00 | 2.73 | 0.00 | 1.54 | 7.57 | 44.24 | 27.90 | 286.76 | 0.4865 | -811.0 | -602.7 | |
| 0.00 | 1.36 | 0.00 | 0.76 | 7.23 | 42.05 | 25.71 | 287.30 | 0.4527 | 873.0 | 572.3 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 7.23 | 41.75 | 25.41 | 287.48 | 0.4482 | 301.0 | 334.5 | |
| 0.00 | 2.13 | 0.00 | 1.17 | 7.70 | 40.82 | 24.49 | 289.11 | 0.4366 | 881.0 | 701.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
