SDO HMI 2011-12-12 09:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.19 | 20.27 | 5.93 | 23.28 | -18.83 | 78.88 | 63.09 | 249.30 | 0.9040 | 38.0 | 179.7 | |
|
previous
or next observation for the same group /

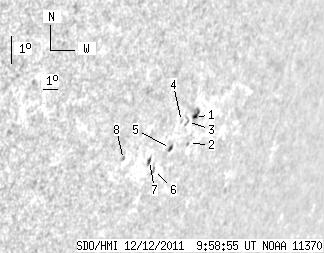

back to the solar disc SDO HMI 2011-12-12 09:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.53 | 6.98 | 1.81 | 8.24 | -18.21 | 79.77 | 63.98 | 250.13 | 0.9095 | 494.0 | 385.3 | |
| 0.00 | 1.02 | 0.00 | 1.22 | -19.02 | 79.90 | 64.12 | 249.27 | 0.9113 | 470.0 | 348.8 | |
| 0.00 | 2.47 | 0.00 | 2.87 | -18.33 | 79.36 | 63.57 | 249.93 | 0.9068 | 576.0 | 517.3 | |
| 0.00 | 1.11 | 0.00 | 1.27 | -18.34 | 78.94 | 63.15 | 249.86 | 0.9039 | 358.0 | 366.2 | |
| 1.96 | 2.38 | 2.24 | 2.73 | -19.18 | 78.74 | 62.96 | 248.90 | 0.9035 | -163.7 | -43.6 | |
| 0.00 | 2.64 | 0.00 | 2.97 | -19.87 | 78.06 | 62.27 | 248.02 | 0.8995 | -471.0 | -315.9 | |
| 1.70 | 2.56 | 1.88 | 2.82 | -19.56 | 77.57 | 61.79 | 248.28 | 0.8956 | -243.7 | -282.8 | |
| 0.00 | 1.11 | 0.00 | 1.16 | -19.54 | 75.87 | 60.08 | 247.99 | 0.8830 | -587.0 | -442.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
