SDO HMI 2011-12-12 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.94 | 24.86 | 8.44 | 51.35 | 21.27 | 299.86 | -74.84 | 67.89 | 0.9701 | -181.9 | -7.5 | |
|
previous
or next observation for the same group /

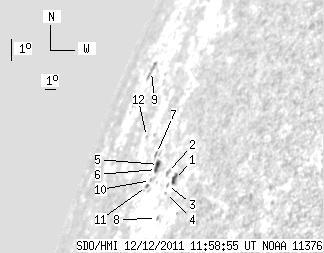

back to the solar disc SDO HMI 2011-12-12 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.32 | 4.34 | 5.44 | 7.11 | 19.96 | 303.72 | -70.97 | 68.83 | 0.9543 | -429.4 | -417.4 | |
| 0.00 | 2.47 | 0.00 | 4.24 | 20.19 | 302.77 | -71.93 | 68.70 | 0.9590 | -151.0 | -163.3 | |
| 0.00 | 1.19 | 0.00 | 1.99 | 19.77 | 303.23 | -71.47 | 69.08 | 0.9565 | -220.0 | -216.4 | |
| 0.00 | 0.68 | 0.00 | 1.14 | 19.55 | 303.27 | -71.43 | 69.30 | 0.9562 | -248.0 | -271.5 | |
| 1.02 | 4.34 | 1.90 | 8.09 | 20.45 | 301.49 | -73.21 | 68.58 | 0.9648 | -191.9 | -68.7 | |
| 0.60 | -5.00 | 1.10 | -5.00 | 20.30 | 301.46 | -73.23 | 68.74 | 0.9648 | -181.9 | 999999 | |
| 0.00 | 1.70 | 0.00 | 3.30 | 20.81 | 300.80 | -73.90 | 68.28 | 0.9678 | 333.0 | 311.6 | |
| 0.00 | 1.36 | 0.00 | 2.26 | 18.74 | 303.23 | -71.47 | 70.16 | 0.9559 | -414.0 | -350.9 | |
| 0.00 | 5.88 | 0.00 | 17.50 | 23.49 | 295.44 | -79.26 | 66.05 | 0.9867 | 256.0 | 99.3 | |
| 0.00 | 0.85 | 0.00 | 1.60 | 19.95 | 301.22 | -73.47 | 69.12 | 0.9657 | -129.0 | -88.6 | |
| 0.00 | 1.28 | 0.00 | 2.42 | 19.77 | 301.00 | -73.69 | 69.34 | 0.9665 | 1.0 | -68.0 | |
| 0.00 | 0.77 | 0.00 | 1.70 | 21.37 | 298.74 | -75.95 | 67.92 | 0.9759 | 300.0 | 288.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
