SDO HMI 2011-12-12 12:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.75 | 20.94 | 9.35 | 25.50 | -18.90 | 78.86 | 64.71 | 249.47 | 0.9151 | 74.4 | 222.1 | |
|
previous
or next observation for the same group /

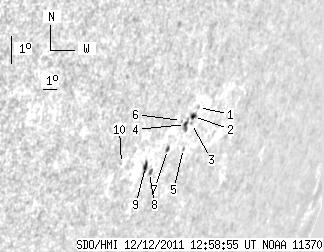

back to the solar disc SDO HMI 2011-12-12 12:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 1.08 | -17.85 | 80.08 | 65.93 | 250.79 | 0.9221 | 292.0 | 254.7 | |
| 2.13 | 3.15 | 2.68 | 3.97 | -18.13 | 79.90 | 65.76 | 250.46 | 0.9212 | 407.4 | 399.3 | |
| 0.00 | 1.19 | 0.00 | 1.50 | -18.35 | 79.91 | 65.76 | 250.23 | 0.9214 | 491.0 | 480.4 | |
| 0.68 | 4.60 | 0.85 | 5.72 | -18.38 | 79.48 | 65.33 | 250.13 | 0.9187 | 674.4 | 554.1 | |
| 0.00 | 0.77 | 0.00 | 0.97 | -19.13 | 79.89 | 65.74 | 249.39 | 0.9220 | 325.0 | 293.0 | |
| 0.00 | 0.68 | 0.00 | 0.83 | -18.26 | 79.09 | 64.95 | 250.21 | 0.9160 | 388.0 | 446.6 | |
| 1.19 | 2.21 | 1.45 | 2.68 | -19.17 | 78.72 | 64.57 | 249.17 | 0.9145 | -172.5 | -118.8 | |
| 0.51 | 2.47 | 0.60 | 2.93 | -19.89 | 77.95 | 63.80 | 248.26 | 0.9101 | -201.5 | -228.9 | |
| 3.24 | 4.51 | 3.77 | 5.26 | -19.71 | 77.53 | 63.38 | 248.40 | 0.9070 | -299.4 | -233.9 | |
| 0.00 | 0.51 | 0.00 | 0.56 | -19.63 | 75.82 | 61.68 | 248.20 | 0.8949 | -593.0 | -447.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
