SDO HMI 2011-12-12 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.30 | 26.91 | 7.84 | 33.55 | -18.83 | 78.91 | 65.32 | 249.63 | 0.9189 | 133.8 | 132.8 | |
|
previous
or next observation for the same group /

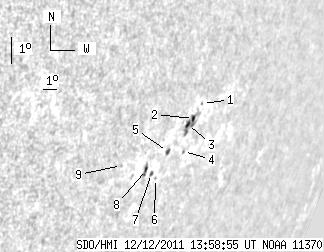

back to the solar disc SDO HMI 2011-12-12 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 1.22 | -17.66 | 80.24 | 66.65 | 251.09 | 0.9264 | 282.0 | 215.7 | |
| 1.19 | 13.37 | 1.53 | 17.15 | -18.13 | 79.89 | 66.29 | 250.54 | 0.9246 | 428.1 | 404.6 | |
| 2.30 | -2.00 | 2.92 | -2.00 | -18.31 | 79.56 | 65.97 | 250.29 | 0.9227 | 631.4 | 999999 | |
| 0.00 | 0.94 | 0.00 | 1.21 | -19.15 | 79.90 | 66.31 | 249.43 | 0.9256 | 369.0 | 272.6 | |
| 0.85 | 2.81 | 1.05 | 3.47 | -19.16 | 78.68 | 65.08 | 249.25 | 0.9178 | -191.8 | -61.3 | |
| 0.00 | 0.85 | 0.00 | 1.05 | -20.01 | 78.44 | 64.84 | 248.30 | 0.9171 | -235.0 | -161.7 | |
| 0.51 | 1.79 | 0.62 | 2.16 | -19.86 | 78.02 | 64.42 | 248.40 | 0.9142 | -327.8 | -201.7 | |
| 1.45 | 4.85 | 1.72 | 5.77 | -19.74 | 77.57 | 63.97 | 248.46 | 0.9110 | -279.4 | -282.4 | |
| 0.00 | 1.36 | 0.00 | 1.52 | -19.62 | 75.74 | 62.14 | 248.28 | 0.8983 | -445.0 | -357.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
