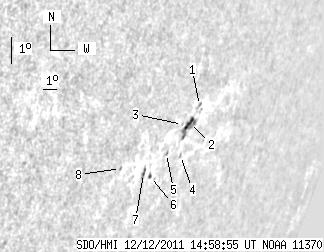

SDO HMI 2011-12-12 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.11 | 26.05 | 6.58 | 33.35 | -18.69 | 79.12 | 66.07 | 249.90 | 0.9236 | 257.6 | 193.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-12 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 2.48 | -17.66 | 80.16 | 67.11 | 251.14 | 0.9293 | 316.0 | 261.6 | |
| 3.75 | 13.37 | 4.90 | 17.53 | -18.22 | 79.79 | 66.74 | 250.50 | 0.9275 | 590.2 | 411.3 | |
| 0.00 | 0.94 | 0.00 | 1.20 | -18.25 | 79.27 | 66.22 | 250.39 | 0.9242 | 503.0 | 425.7 | |
| 0.00 | 1.53 | 0.00 | 2.03 | -19.22 | 79.87 | 66.82 | 249.44 | 0.9288 | 401.0 | 323.1 | |
| 0.00 | 1.19 | 0.00 | 1.51 | -19.16 | 78.73 | 65.68 | 249.34 | 0.9216 | -131.0 | -56.1 | |
| 1.36 | 1.87 | 1.68 | 2.31 | -19.89 | 78.08 | 65.03 | 248.46 | 0.9182 | -209.4 | -312.5 | |
| 0.00 | 3.92 | 0.00 | 4.74 | -19.80 | 77.49 | 64.44 | 248.47 | 0.9142 | -83.0 | -227.6 | |
| 0.00 | 1.36 | 0.00 | 1.55 | -19.65 | 75.75 | 62.70 | 248.35 | 0.9022 | -305.0 | -307.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
