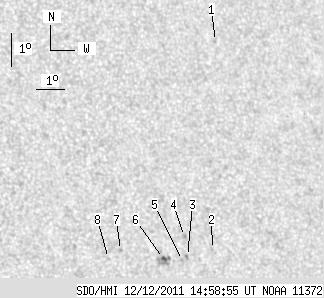

SDO HMI 2011-12-12 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 18.56 | 0.81 | 11.11 | 7.93 | 46.12 | 33.07 | 285.05 | 0.5622 | -402.8 | -579.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-12 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.64 | 14.01 | 48.58 | 35.54 | 293.87 | 0.6190 | 622.0 | 516.8 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 7.74 | 47.62 | 34.57 | 284.20 | 0.5823 | -531.0 | -314.6 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 7.52 | 46.70 | 33.65 | 284.17 | 0.5689 | -754.0 | -604.2 | |
| 0.00 | 1.79 | 0.00 | 1.08 | 8.12 | 46.65 | 33.60 | 285.22 | 0.5700 | -837.0 | -731.9 | |
| 0.00 | 1.53 | 0.00 | 0.92 | 7.40 | 46.51 | 33.46 | 284.03 | 0.5658 | -670.0 | -561.4 | |
| 1.36 | 9.96 | 0.81 | 5.93 | 7.46 | 45.84 | 32.79 | 284.38 | 0.5566 | -936.6 | -768.6 | |
| 0.00 | 1.45 | 0.00 | 0.85 | 7.69 | 44.35 | 31.30 | 285.40 | 0.5361 | -700.0 | -580.3 | |
| 0.00 | 0.51 | 0.00 | 0.30 | 7.45 | 43.91 | 30.86 | 285.14 | 0.5291 | 483.0 | 347.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
