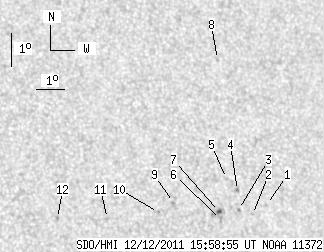

SDO HMI 2011-12-12 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.53 | 18.82 | 0.92 | 11.22 | 7.81 | 45.33 | 32.84 | 285.00 | 0.5582 | -233.5 | -331.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-12 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.16 | 7.71 | 47.68 | 35.19 | 283.95 | 0.5906 | -609.0 | -541.0 | |
| 0.00 | 1.02 | 0.00 | 0.62 | 7.41 | 47.15 | 34.65 | 283.63 | 0.5824 | -513.0 | -476.4 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 7.56 | 46.65 | 34.16 | 284.05 | 0.5760 | -712.0 | -651.2 | |
| 0.00 | 2.04 | 0.00 | 1.24 | 8.12 | 46.67 | 34.17 | 285.00 | 0.5779 | -892.0 | -688.8 | |
| 0.00 | 1.11 | 0.00 | 0.67 | 8.48 | 46.31 | 33.81 | 285.75 | 0.5741 | -596.0 | -466.6 | |
| 0.00 | 2.13 | 0.00 | 1.28 | 7.25 | 45.98 | 33.48 | 283.77 | 0.5657 | -470.0 | -530.0 | |
| 1.53 | 5.02 | 0.92 | 3.01 | 7.49 | 45.97 | 33.47 | 284.19 | 0.5662 | -978.6 | -759.9 | |
| 0.00 | 0.94 | 0.00 | 0.57 | 12.06 | 46.42 | 33.93 | 291.64 | 0.5894 | 529.0 | 403.0 | |
| 0.00 | 1.53 | 0.00 | 0.90 | 7.75 | 44.36 | 31.86 | 285.27 | 0.5444 | -837.0 | -666.1 | |
| 0.00 | 1.02 | 0.00 | 0.60 | 7.45 | 43.81 | 31.31 | 284.96 | 0.5355 | 509.0 | 511.9 | |
| 0.00 | 1.28 | 0.00 | 0.73 | 7.26 | 42.03 | 29.54 | 285.39 | 0.5093 | 894.0 | 518.9 | |
| 0.00 | 1.36 | 0.00 | 0.77 | 7.25 | 40.33 | 27.84 | 286.20 | 0.4844 | 814.0 | 674.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
