SDO HMI 2011-12-12 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.17 | 22.30 | 5.86 | 30.97 | -18.48 | 79.51 | 68.12 | 250.38 | 0.9358 | 263.9 | 293.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-12 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

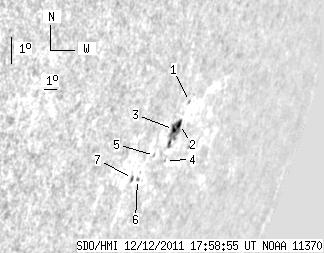

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 1.82 | -17.46 | 80.26 | 68.87 | 251.56 | 0.9395 | 231.0 | 181.9 | |
| 2.30 | 16.34 | 3.25 | 22.97 | -18.17 | 79.99 | 68.60 | 250.77 | 0.9384 | 387.9 | 465.2 | |
| 1.87 | -2.00 | 2.61 | -2.00 | -18.33 | 79.61 | 68.22 | 250.56 | 0.9363 | 654.7 | 999999 | |
| 0.00 | 0.34 | 0.00 | 0.48 | -19.30 | 79.76 | 68.37 | 249.55 | 0.9379 | 377.0 | 374.0 | |
| 0.00 | 1.11 | 0.00 | 1.49 | -19.15 | 78.71 | 67.32 | 249.58 | 0.9317 | -69.0 | -27.0 | |
| 0.00 | 1.36 | 0.00 | 1.79 | -19.91 | 77.98 | 66.58 | 248.67 | 0.9279 | -310.0 | -236.2 | |
| 0.00 | 1.87 | 0.00 | 2.42 | -19.88 | 77.56 | 66.16 | 248.64 | 0.9253 | -332.0 | -267.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
