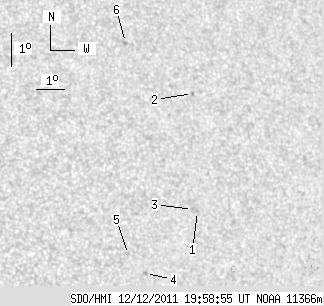

SDO HMI 2011-12-12 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.01 | 0.00 | 4.72 | 10.24 | 41.26 | 30.97 | 290.05 | 0.5427 | 471.3 | 430.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-12 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.86 | 9.17 | 42.39 | 32.10 | 287.71 | 0.5529 | 538.0 | 406.9 | |
| 0.00 | 1.02 | 0.00 | 0.62 | 12.73 | 42.65 | 32.36 | 293.62 | 0.5721 | -613.0 | -479.3 | |
| 0.00 | 1.02 | 0.00 | 0.61 | 9.23 | 42.22 | 31.93 | 287.90 | 0.5508 | 690.0 | 558.2 | |
| 0.00 | 1.79 | 0.00 | 1.03 | 7.31 | 40.41 | 30.13 | 285.24 | 0.5180 | 838.0 | 684.9 | |
| 0.00 | 0.94 | 0.00 | 0.54 | 7.88 | 39.87 | 29.58 | 286.56 | 0.5123 | 578.0 | 502.7 | |
| 0.00 | 1.79 | 0.00 | 1.06 | 14.27 | 40.49 | 30.20 | 297.57 | 0.5522 | 797.0 | 618.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
