SDO HMI 2011-12-12 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.22 | 212.89 | 19.67 | 109.62 | 8.92 | 357.02 | -12.72 | 52.78 | 0.2742 | -752.3 | -405.4 | |
|
previous
or next observation for the same group /

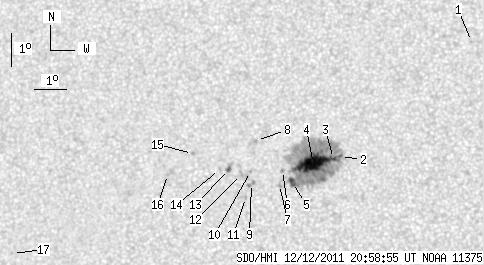

back to the solar disc SDO HMI 2011-12-12 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.44 | 12.66 | 1.99 | -7.75 | 29.91 | 0.2650 | -979.0 | -694.1 | |
| 1.28 | 190.08 | 0.66 | 97.78 | 9.21 | 358.10 | -11.63 | 49.58 | 0.2626 | -831.3 | -467.4 | |
| 1.19 | -2.00 | 0.61 | -2.00 | 9.15 | 357.89 | -11.84 | 50.25 | 0.2647 | -1083.7 | 999999 | |
| 29.45 | -2.00 | 15.15 | -2.00 | 9.00 | 357.29 | -12.45 | 52.07 | 0.2711 | -1422.6 | 999999 | |
| 4.43 | -2.00 | 2.28 | -2.00 | 8.43 | 356.66 | -13.07 | 55.09 | 0.2740 | -1001.4 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.88 | 8.79 | 356.34 | -13.39 | 54.66 | 0.2818 | -868.0 | -593.6 | |
| 0.00 | 2.64 | 0.00 | 1.36 | 8.37 | 356.27 | -13.46 | 56.05 | 0.2790 | -719.0 | -598.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 9.69 | 355.51 | -14.22 | 53.73 | 0.3018 | -1007.0 | -725.8 | |
| 0.00 | 3.23 | 0.00 | 1.67 | 8.40 | 355.41 | -14.33 | 57.56 | 0.2914 | -498.0 | -584.1 | |
| 0.00 | 0.51 | 0.00 | 0.26 | 8.76 | 355.36 | -14.37 | 56.60 | 0.2952 | -779.0 | -573.0 | |
| 0.00 | 1.53 | 0.00 | 0.79 | 7.99 | 355.24 | -14.50 | 59.10 | 0.2902 | 1010.0 | 716.2 | |
| 0.00 | 2.30 | 0.00 | 1.19 | 8.67 | 355.09 | -14.64 | 57.34 | 0.2982 | 693.0 | 519.6 | |
| 1.87 | 3.66 | 0.97 | 1.90 | 8.83 | 354.68 | -15.05 | 57.61 | 0.3053 | 962.0 | 820.3 | |
| 0.00 | 1.70 | 0.00 | 0.89 | 8.83 | 354.40 | -15.33 | 58.07 | 0.3092 | 755.0 | 624.2 | |
| 0.00 | 1.28 | 0.00 | 0.67 | 9.31 | 353.54 | -16.19 | 58.14 | 0.3254 | 966.0 | 772.1 | |
| 0.00 | 1.11 | 0.00 | 0.58 | 8.68 | 352.79 | -16.94 | 60.92 | 0.3311 | 954.0 | 755.4 | |
| 0.00 | 0.94 | 0.00 | 0.50 | 6.34 | 348.01 | -21.72 | 72.00 | 0.3885 | 758.0 | 634.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
