SDO HMI 2011-12-12 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.45 | 41.37 | 19.47 | 63.97 | 21.06 | 300.09 | -69.64 | 67.47 | 0.9468 | -255.5 | -21.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-12 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

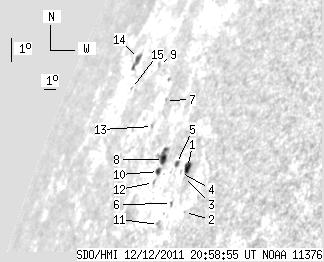

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.43 | 6.04 | 5.77 | 7.88 | 19.98 | 303.79 | -65.94 | 68.07 | 0.9268 | -486.5 | -389.4 | |
| 0.00 | 0.77 | 0.00 | 0.96 | 18.56 | 304.66 | -65.07 | 69.45 | 0.9198 | -442.0 | -436.4 | |
| 0.00 | 0.68 | 0.00 | 0.89 | 19.67 | 303.73 | -66.00 | 68.42 | 0.9268 | -539.0 | -520.2 | |
| 0.00 | 1.02 | 0.00 | 1.35 | 19.83 | 303.36 | -66.37 | 68.30 | 0.9292 | -269.0 | -196.8 | |
| 1.62 | 2.47 | 2.20 | 3.35 | 20.12 | 302.80 | -66.94 | 68.09 | 0.9328 | -240.1 | -280.0 | |
| 0.00 | 1.11 | 0.00 | 1.45 | 18.85 | 303.44 | -66.29 | 69.33 | 0.9277 | -386.0 | -368.5 | |
| 0.00 | 0.60 | 0.00 | 0.94 | 22.15 | 299.83 | -69.91 | 66.39 | 0.9507 | -173.0 | -147.1 | |
| 4.17 | 9.53 | 5.98 | 13.76 | 20.26 | 301.59 | -68.14 | 68.12 | 0.9398 | -403.2 | -69.6 | |
| 0.00 | 1.87 | 0.00 | 3.31 | 23.33 | 297.78 | -71.95 | 65.45 | 0.9611 | 294.0 | 299.0 | |
| 1.87 | 3.15 | 2.69 | 4.52 | 19.88 | 301.51 | -68.22 | 68.53 | 0.9399 | -335.7 | -192.4 | |
| 0.00 | 2.81 | 0.00 | 3.75 | 18.20 | 302.92 | -66.81 | 70.10 | 0.9303 | -301.0 | -207.4 | |
| 0.00 | 1.53 | 0.00 | 2.20 | 19.53 | 301.39 | -68.34 | 68.91 | 0.9403 | -227.0 | -201.4 | |
| 0.00 | 1.36 | 0.00 | 2.17 | 21.32 | 299.52 | -70.21 | 67.30 | 0.9516 | -227.0 | -132.1 | |
| 1.36 | 7.49 | 2.83 | 15.59 | 23.55 | 295.06 | -74.67 | 65.55 | 0.9723 | 311.7 | 200.4 | |
| 0.00 | 0.94 | 0.00 | 1.85 | 22.58 | 295.72 | -74.02 | 66.47 | 0.9693 | 509.0 | 458.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
