SDO HMI 2011-12-12 22:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.34 | 436.39 | 50.99 | 235.85 | -17.87 | 352.12 | -16.50 | 137.74 | 0.4039 | 1119.3 | 459.0 | |
|
previous
or next observation for the same group /

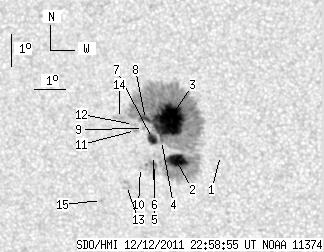

back to the solar disc SDO HMI 2011-12-12 22:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.78 | -18.61 | 353.82 | -14.81 | 141.98 | 0.3950 | -822.0 | -590.2 | |
| 17.54 | 401.91 | 9.52 | 217.03 | -18.76 | 352.38 | -16.25 | 139.71 | 0.4114 | 1183.1 | 469.8 | |
| 63.94 | -2.00 | 34.50 | -2.00 | -17.52 | 352.24 | -16.38 | 137.33 | 0.3986 | 1364.7 | 999999 | |
| 0.94 | -2.00 | 0.51 | -2.00 | -18.14 | 351.96 | -16.67 | 137.94 | 0.4087 | 532.3 | 999999 | |
| 1.19 | 14.73 | 0.65 | 8.04 | -18.88 | 351.65 | -16.97 | 138.71 | 0.4204 | 727.1 | 400.3 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -18.60 | 351.65 | -16.98 | 138.23 | 0.4172 | 687.0 | 485.0 | |
| 7.32 | -2.00 | 3.97 | -2.00 | -18.08 | 351.67 | -16.96 | 137.36 | 0.4111 | 805.5 | 999999 | |
| 3.41 | -2.00 | 1.84 | -2.00 | -17.49 | 351.50 | -17.12 | 136.05 | 0.4064 | 745.9 | 999999 | |
| 0.00 | 1.53 | 0.00 | 0.83 | -17.77 | 351.41 | -17.22 | 136.39 | 0.4105 | 699.0 | 540.5 | |
| 0.00 | 1.02 | 0.00 | 0.56 | -18.97 | 351.19 | -17.44 | 138.11 | 0.4263 | 557.0 | 445.9 | |
| 0.00 | 2.47 | 0.00 | 1.34 | -17.83 | 351.14 | -17.48 | 136.08 | 0.4141 | 724.0 | 552.0 | |
| 0.00 | 2.04 | 0.00 | 1.11 | -17.64 | 351.10 | -17.53 | 135.68 | 0.4126 | 463.0 | 415.7 | |
| 0.00 | 4.60 | 0.00 | 2.53 | -19.53 | 350.67 | -17.96 | 138.22 | 0.4381 | 401.0 | 579.9 | |
| 0.00 | 4.34 | 0.00 | 2.36 | -17.45 | 350.66 | -17.97 | 134.66 | 0.4155 | 51.0 | 8.1 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -20.00 | 349.78 | -18.85 | 137.65 | 0.4525 | 729.0 | 555.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
