SDO HMI 2011-12-13 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.06 | 16.53 | 1.97 | 10.72 | 7.88 | 45.26 | 39.38 | 283.07 | 0.6470 | -173.5 | -164.5 | |
|
previous
or next observation for the same group /

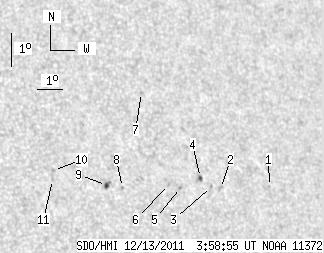

back to the solar disc SDO HMI 2011-12-13 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.65 | 7.68 | 49.60 | 43.72 | 281.66 | 0.7017 | -630.0 | -477.6 | |
| 0.00 | 2.21 | 0.00 | 1.49 | 7.60 | 47.60 | 41.71 | 282.01 | 0.6767 | -621.0 | -485.1 | |
| 0.00 | 1.19 | 0.00 | 0.80 | 7.66 | 47.25 | 41.36 | 282.18 | 0.6724 | -637.0 | -479.4 | |
| 1.19 | 2.81 | 0.79 | 1.86 | 7.93 | 46.84 | 40.96 | 282.67 | 0.6678 | -816.1 | -656.0 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 7.62 | 46.02 | 40.14 | 282.43 | 0.6566 | -948.0 | -791.9 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 7.71 | 45.56 | 39.68 | 282.68 | 0.6509 | -658.0 | -541.5 | |
| 0.00 | 0.85 | 0.00 | 0.55 | 10.46 | 44.88 | 38.99 | 287.05 | 0.6496 | -649.0 | -471.5 | |
| 0.00 | 0.94 | 0.00 | 0.59 | 7.60 | 43.79 | 37.90 | 283.02 | 0.6273 | 555.0 | 448.8 | |
| 1.87 | 3.41 | 1.18 | 2.15 | 7.66 | 43.19 | 37.31 | 283.28 | 0.6195 | 754.5 | 689.1 | |
| 0.00 | 1.28 | 0.00 | 0.79 | 8.09 | 41.27 | 35.39 | 284.62 | 0.5948 | 738.0 | 525.2 | |
| 0.00 | 1.11 | 0.00 | 0.68 | 7.83 | 41.21 | 35.32 | 284.20 | 0.5931 | 701.0 | 556.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
