SDO HMI 2011-12-13 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.91 | 195.72 | 17.75 | 99.55 | 8.87 | 356.85 | -9.03 | 43.15 | 0.2277 | -666.4 | -403.6 | |
|
previous
or next observation for the same group /

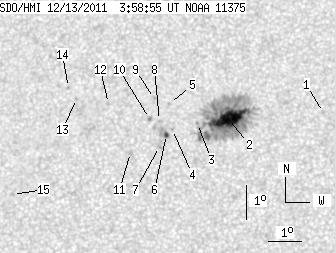

back to the solar disc SDO HMI 2011-12-13 03:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.56 | 9.08 | 0.01 | -5.88 | 30.97 | 0.1974 | -822.0 | -620.2 | |
| 32.70 | 170.93 | 16.62 | 86.87 | 8.91 | 357.15 | -8.73 | 42.22 | 0.2243 | -1348.6 | -502.3 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 8.76 | 356.21 | -9.67 | 45.56 | 0.2336 | -808.0 | -690.0 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 8.58 | 355.46 | -10.42 | 48.24 | 0.2409 | -805.0 | -632.1 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 9.36 | 355.35 | -10.54 | 46.19 | 0.2512 | -789.0 | -594.1 | |
| 2.21 | 8.01 | 1.13 | 4.09 | 8.43 | 355.28 | -10.60 | 49.19 | 0.2415 | -662.5 | 41.0 | |
| 0.00 | 1.70 | 0.00 | 0.87 | 8.07 | 355.08 | -10.80 | 50.87 | 0.2403 | 907.0 | 774.5 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 8.85 | 355.06 | -10.82 | 48.47 | 0.2490 | 496.0 | 402.5 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 9.51 | 354.89 | -11.00 | 46.96 | 0.2586 | -739.0 | -557.1 | |
| 0.00 | 1.96 | 0.00 | 1.00 | 8.91 | 354.75 | -11.13 | 49.07 | 0.2536 | 1079.0 | 841.9 | |
| 0.00 | 1.96 | 0.00 | 1.00 | 7.90 | 354.21 | -11.68 | 53.59 | 0.2503 | 808.0 | 589.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 9.36 | 353.49 | -12.40 | 50.74 | 0.2748 | 822.0 | 672.1 | |
| 0.00 | 0.94 | 0.00 | 0.48 | 9.52 | 352.50 | -13.39 | 52.42 | 0.2894 | 801.0 | 630.6 | |
| 0.00 | 1.11 | 0.00 | 0.57 | 9.85 | 352.24 | -13.65 | 52.04 | 0.2961 | 912.0 | 711.1 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 6.65 | 350.63 | -15.25 | 64.21 | 0.2915 | 810.0 | 535.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
