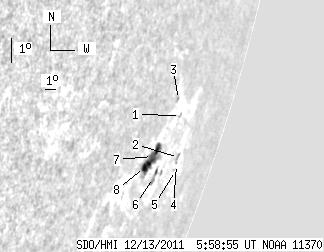

SDO HMI 2011-12-13 05:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.19 | 37.49 | 31.79 | 77.29 | -18.64 | 80.24 | 75.44 | 250.93 | 0.9713 | 343.8 | 136.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-13 05:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 2.47 | -17.30 | 81.55 | 76.75 | 252.39 | 0.9760 | 107.0 | 113.9 | |
| 0.00 | 2.64 | 0.00 | 6.70 | -18.59 | 83.19 | 78.40 | 251.17 | 0.9819 | 29.0 | 109.6 | |
| 0.00 | 1.45 | 0.00 | 3.02 | -16.81 | 80.66 | 75.86 | 252.84 | 0.9726 | 302.0 | 247.8 | |
| 0.00 | 0.34 | 0.00 | 0.87 | -18.81 | 83.24 | 78.45 | 250.95 | 0.9821 | 135.0 | 122.8 | |
| 0.00 | 0.60 | 0.00 | 1.54 | -18.99 | 83.40 | 78.61 | 250.77 | 0.9826 | -63.0 | 62.9 | |
| 0.00 | 5.71 | 0.00 | 12.08 | -19.24 | 80.61 | 75.81 | 250.35 | 0.9731 | 133.0 | 46.9 | |
| 12.95 | 25.64 | 25.59 | 50.61 | -18.59 | 79.62 | 74.83 | 250.94 | 0.9690 | 545.4 | 196.3 | |
| 3.24 | -7.00 | 6.20 | -7.00 | -18.94 | 79.10 | 74.31 | 250.54 | 0.9669 | -259.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
