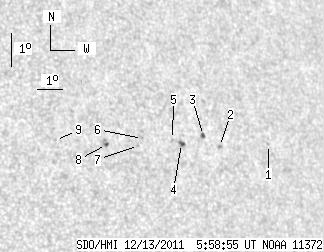

SDO HMI 2011-12-13 05:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.18 | 13.62 | 2.78 | 8.99 | 7.74 | 45.43 | 40.63 | 282.52 | 0.6629 | -321.8 | -89.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-13 05:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.60 | 7.71 | 49.68 | 44.89 | 281.47 | 0.7160 | -592.0 | -490.0 | |
| 0.00 | 1.53 | 0.00 | 1.05 | 7.63 | 47.64 | 42.85 | 281.80 | 0.6910 | -708.0 | -478.6 | |
| 1.62 | 1.87 | 1.10 | 1.27 | 7.96 | 47.03 | 42.24 | 282.41 | 0.6841 | -715.0 | -588.0 | |
| 1.79 | 2.30 | 1.19 | 1.53 | 7.71 | 46.12 | 41.33 | 282.28 | 0.6721 | -813.3 | -756.0 | |
| 0.00 | 1.02 | 0.00 | 0.68 | 7.83 | 45.78 | 40.98 | 282.54 | 0.6680 | -714.0 | -557.5 | |
| 0.00 | 0.77 | 0.00 | 0.50 | 7.85 | 44.60 | 39.81 | 282.88 | 0.6529 | -538.0 | -418.0 | |
| 0.00 | 1.02 | 0.00 | 0.66 | 7.64 | 44.42 | 39.63 | 282.60 | 0.6501 | -707.0 | -470.3 | |
| 0.77 | 3.32 | 0.49 | 2.12 | 7.66 | 43.20 | 38.40 | 282.98 | 0.6341 | 845.6 | 740.1 | |
| 0.00 | 0.94 | 0.00 | 0.58 | 7.76 | 41.29 | 36.49 | 283.72 | 0.6089 | 606.0 | 494.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
