SDO HMI 2011-12-13 08:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.57 | 16.77 | 2.40 | 11.22 | 7.73 | 44.70 | 41.54 | 282.29 | 0.6743 | -44.4 | -195.4 | |
|
previous
or next observation for the same group /

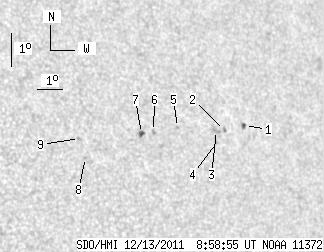

back to the solar disc SDO HMI 2011-12-13 08:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 2.47 | 0.95 | 1.72 | 7.99 | 47.32 | 44.17 | 282.03 | 0.7078 | -644.0 | -455.5 | |
| 0.00 | 1.62 | 0.00 | 1.11 | 7.83 | 46.48 | 43.32 | 282.00 | 0.6972 | -723.0 | -673.8 | |
| 0.00 | 3.32 | 0.00 | 2.27 | 7.83 | 46.15 | 42.99 | 282.07 | 0.6931 | -780.0 | -693.0 | |
| 0.00 | 1.19 | 0.00 | 0.82 | 7.47 | 46.10 | 42.94 | 281.57 | 0.6919 | -785.0 | -549.1 | |
| 0.00 | 0.85 | 0.00 | 0.57 | 7.91 | 44.58 | 41.42 | 282.56 | 0.6738 | -669.0 | -518.0 | |
| 0.00 | 1.87 | 0.00 | 1.23 | 7.78 | 43.62 | 40.46 | 282.62 | 0.6612 | 507.0 | 372.5 | |
| 2.21 | 2.64 | 1.45 | 1.73 | 7.72 | 43.14 | 39.98 | 282.65 | 0.6549 | 811.7 | 559.8 | |
| 0.00 | 1.19 | 0.00 | 0.75 | 6.98 | 40.92 | 37.76 | 282.12 | 0.6240 | 711.0 | 571.0 | |
| 0.00 | 1.62 | 0.00 | 1.02 | 7.55 | 40.75 | 37.59 | 283.06 | 0.6231 | 757.0 | 635.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
