SDO HMI 2011-12-13 09:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 91.36 | 451.24 | 48.17 | 237.88 | -17.88 | 352.13 | -10.48 | 149.70 | 0.3449 | 937.9 | 458.1 | |
|
previous
or next observation for the same group /

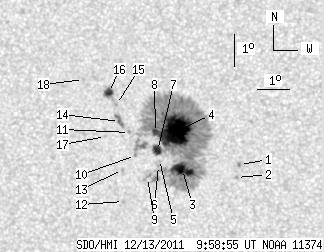

back to the solar disc SDO HMI 2011-12-13 09:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.87 | 0.00 | 0.99 | -18.67 | 354.22 | -8.39 | 155.92 | 0.3403 | -1027.0 | -867.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -19.07 | 354.11 | -8.51 | 156.14 | 0.3471 | -876.0 | -693.2 | |
| 15.24 | 421.77 | 8.07 | 222.28 | -18.82 | 352.41 | -10.20 | 151.75 | 0.3557 | 1151.4 | 472.4 | |
| 60.54 | -3.00 | 31.87 | -3.00 | -17.64 | 352.26 | -10.35 | 149.64 | 0.3403 | 1378.0 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.23 | -18.51 | 351.70 | -10.91 | 149.67 | 0.3570 | 128.0 | 228.2 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -18.69 | 351.66 | -10.95 | 149.85 | 0.3599 | 669.0 | 547.8 | |
| 6.39 | -3.00 | 3.38 | -3.00 | -18.23 | 351.66 | -10.95 | 149.15 | 0.3535 | 833.3 | 999999 | |
| 4.17 | -3.00 | 2.20 | -3.00 | -17.67 | 351.63 | -10.98 | 148.21 | 0.3461 | 795.8 | 999999 | |
| 0.00 | 3.49 | 0.00 | 1.86 | -19.07 | 351.28 | -11.33 | 149.57 | 0.3681 | 647.0 | 518.0 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -18.38 | 350.95 | -11.66 | 147.81 | 0.3617 | 704.0 | 600.8 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -17.67 | 350.81 | -11.80 | 146.35 | 0.3534 | 638.0 | 513.5 | |
| 0.00 | 1.19 | 0.00 | 0.64 | -19.81 | 350.46 | -12.15 | 148.91 | 0.3852 | 502.0 | 457.0 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -18.82 | 350.51 | -12.11 | 147.53 | 0.3714 | 761.0 | 553.9 | |
| 0.00 | 6.22 | 0.00 | 3.29 | -17.33 | 350.52 | -12.10 | 145.14 | 0.3516 | 969.0 | 772.1 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -16.81 | 350.46 | -12.16 | 144.09 | 0.3453 | 691.0 | 451.8 | |
| 5.02 | 7.41 | 2.65 | 3.90 | -16.44 | 350.23 | -12.39 | 142.93 | 0.3428 | -984.6 | -216.0 | |
| 0.00 | 0.68 | 0.00 | 0.36 | -17.79 | 350.04 | -12.57 | 144.90 | 0.3621 | -732.0 | -539.8 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -16.04 | 349.47 | -13.15 | 140.54 | 0.3455 | -871.0 | -703.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
