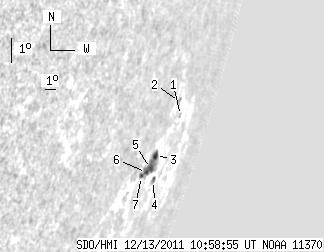

SDO HMI 2011-12-13 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.98 | 26.22 | 16.39 | 63.45 | -18.43 | 79.78 | 77.72 | 251.30 | 0.9796 | 304.9 | 250.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-13 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 4.03 | -17.12 | 81.59 | 79.52 | 252.72 | 0.9850 | 168.0 | 164.3 | |
| 0.00 | 2.55 | 0.00 | 6.61 | -16.70 | 80.73 | 78.67 | 253.11 | 0.9824 | 270.0 | 173.2 | |
| 2.55 | 19.75 | 6.10 | 46.45 | -18.38 | 79.63 | 77.56 | 251.34 | 0.9791 | 347.8 | 322.2 | |
| 0.00 | 2.47 | 0.00 | 6.36 | -19.15 | 80.58 | 78.52 | 250.60 | 0.9823 | -80.0 | 47.0 | |
| 2.30 | -3.00 | 5.46 | -3.00 | -18.79 | 79.52 | 77.45 | 250.92 | 0.9788 | 580.1 | 999999 | |
| 1.19 | -3.00 | 2.75 | -3.00 | -18.92 | 79.14 | 77.07 | 250.76 | 0.9775 | 236.5 | 999999 | |
| 0.94 | -3.00 | 2.08 | -3.00 | -19.05 | 78.63 | 76.57 | 250.60 | 0.9758 | -185.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
