SDO HMI 2011-12-13 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.32 | 65.81 | 21.25 | 75.63 | 21.06 | 299.91 | -62.16 | 66.17 | 0.9026 | -179.9 | -26.5 | |
|
previous
or next observation for the same group /

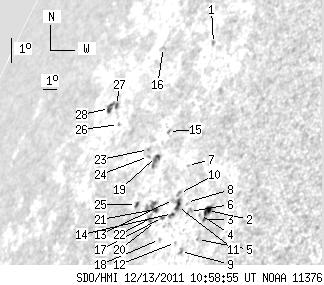

back to the solar disc SDO HMI 2011-12-13 10:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 2.00 | 25.36 | 300.22 | -61.85 | 61.47 | 0.9087 | -360.0 | -279.5 | |
| 4.60 | 6.13 | 4.64 | 6.19 | 19.95 | 303.79 | -58.28 | 66.55 | 0.8736 | -551.2 | -445.5 | |
| 0.00 | 1.02 | 0.00 | 1.03 | 19.67 | 303.71 | -58.35 | 66.88 | 0.8736 | -624.0 | -581.8 | |
| 0.00 | 1.11 | 0.00 | 1.13 | 19.83 | 303.38 | -58.69 | 66.78 | 0.8766 | -284.0 | -251.5 | |
| 0.00 | 0.77 | 0.00 | 0.77 | 19.04 | 303.71 | -58.35 | 67.58 | 0.8725 | -480.0 | -480.0 | |
| 0.00 | 2.72 | 0.00 | 2.84 | 19.93 | 302.70 | -59.37 | 66.82 | 0.8819 | -456.0 | -341.9 | |
| 0.00 | 0.85 | 0.00 | 0.93 | 21.40 | 301.61 | -60.46 | 65.44 | 0.8925 | -473.0 | -418.1 | |
| 0.00 | 0.34 | 0.00 | 0.36 | 20.22 | 302.33 | -59.74 | 66.58 | 0.8852 | -331.0 | -300.0 | |
| 0.00 | 2.47 | 0.00 | 2.54 | 18.67 | 302.89 | -59.17 | 68.18 | 0.8783 | -582.0 | -496.3 | |
| 0.00 | 2.13 | 0.00 | 2.30 | 20.51 | 301.70 | -60.37 | 66.40 | 0.8904 | -248.0 | -132.4 | |
| 3.41 | 5.02 | 3.65 | 5.38 | 20.10 | 301.84 | -60.23 | 66.82 | 0.8886 | -541.9 | -350.8 | |
| 0.00 | 0.85 | 0.00 | 0.89 | 18.96 | 302.42 | -59.65 | 67.96 | 0.8824 | -392.0 | -365.2 | |
| 0.00 | 1.19 | 0.00 | 1.30 | 20.33 | 301.43 | -60.63 | 66.66 | 0.8920 | 269.0 | 185.5 | |
| 1.02 | 2.47 | 1.10 | 2.66 | 19.88 | 301.66 | -60.41 | 67.10 | 0.8896 | -433.8 | -386.5 | |
| 0.00 | 1.36 | 0.00 | 1.60 | 22.51 | 299.49 | -62.57 | 64.69 | 0.9088 | -356.0 | -288.0 | |
| 0.00 | 1.45 | 0.00 | 1.93 | 25.27 | 296.59 | -65.48 | 62.34 | 0.9305 | 555.0 | 481.1 | |
| 0.00 | 1.62 | 0.00 | 1.77 | 19.76 | 301.09 | -60.98 | 67.35 | 0.8936 | -345.0 | -257.9 | |
| 0.00 | 1.02 | 0.00 | 1.10 | 19.07 | 301.34 | -60.73 | 68.07 | 0.8907 | -192.0 | -179.2 | |
| 0.60 | 6.30 | 0.70 | 7.40 | 21.72 | 299.29 | -62.78 | 65.59 | 0.9090 | 211.6 | 306.7 | |
| 0.00 | 0.77 | 0.00 | 0.85 | 19.64 | 300.71 | -61.36 | 67.56 | 0.8961 | -285.0 | -233.7 | |
| 3.07 | 9.62 | 3.44 | 10.87 | 20.02 | 300.39 | -61.68 | 67.21 | 0.8990 | -301.9 | 136.6 | |
| 0.00 | 1.53 | 0.00 | 1.72 | 19.77 | 300.36 | -61.71 | 67.49 | 0.8988 | -262.0 | -190.0 | |
| 0.00 | 0.77 | 0.00 | 0.93 | 21.95 | 298.53 | -63.53 | 65.49 | 0.9143 | 646.0 | 613.0 | |
| 0.00 | 1.36 | 0.00 | 1.63 | 21.72 | 298.71 | -63.35 | 65.70 | 0.9128 | 506.0 | 445.2 | |
| 1.45 | 2.30 | 1.70 | 2.70 | 20.20 | 299.03 | -63.03 | 67.29 | 0.9086 | -160.9 | -203.3 | |
| 0.00 | 1.19 | 0.00 | 1.63 | 22.79 | 295.49 | -66.58 | 65.17 | 0.9338 | 532.0 | 463.6 | |
| 0.85 | 7.75 | 1.21 | 11.18 | 23.41 | 294.69 | -67.38 | 64.65 | 0.9389 | 384.0 | 229.0 | |
| 3.32 | -27.00 | 4.81 | -27.00 | 23.32 | 294.19 | -67.88 | 64.83 | 0.9415 | 302.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
