SDO HMI 2011-12-13 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.58 | 12.19 | 2.48 | 8.45 | 7.86 | 45.22 | 43.70 | 281.98 | 0.7015 | -156.2 | -212.5 | |
|
previous
or next observation for the same group /

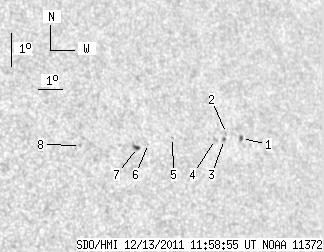

back to the solar disc SDO HMI 2011-12-13 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.62 | 2.30 | 1.17 | 1.66 | 7.97 | 47.54 | 46.02 | 281.62 | 0.7299 | -582.9 | -441.8 | |
| 0.00 | 0.77 | 0.00 | 0.55 | 8.11 | 46.92 | 45.40 | 281.95 | 0.7229 | -551.0 | -452.4 | |
| 0.00 | 1.62 | 0.00 | 1.15 | 7.93 | 46.81 | 45.29 | 281.72 | 0.7212 | -751.0 | -621.9 | |
| 0.00 | 1.70 | 0.00 | 1.21 | 7.93 | 46.43 | 44.91 | 281.80 | 0.7167 | -737.0 | -663.0 | |
| 0.00 | 0.94 | 0.00 | 0.64 | 7.97 | 44.64 | 43.12 | 282.26 | 0.6951 | -628.0 | -417.0 | |
| 0.00 | 0.77 | 0.00 | 0.52 | 7.79 | 43.65 | 42.13 | 282.22 | 0.6823 | 386.0 | 335.4 | |
| 1.96 | 3.15 | 1.31 | 2.11 | 7.66 | 43.19 | 41.67 | 282.15 | 0.6764 | 697.2 | 558.3 | |
| 0.00 | 0.94 | 0.00 | 0.61 | 7.71 | 40.95 | 39.43 | 282.79 | 0.6478 | 725.0 | 596.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
