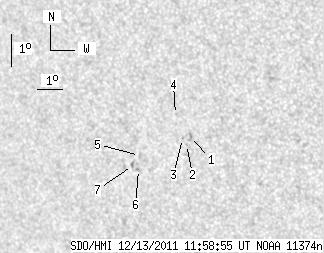

SDO HMI 2011-12-13 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.71 | 0.00 | 6.35 | -17.45 | 323.81 | -37.71 | 116.52 | 0.6543 | 131.3 | 51.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-13 11:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.24 | 0.00 | 2.08 | -17.08 | 324.98 | -36.54 | 116.58 | 0.6387 | 891.0 | 613.9 | |
| 0.00 | 0.51 | 0.00 | 0.33 | -17.32 | 324.77 | -36.75 | 116.83 | 0.6425 | 622.0 | 534.2 | |
| 0.00 | 0.85 | 0.00 | 0.55 | -17.14 | 324.66 | -36.86 | 116.50 | 0.6429 | 597.0 | 493.4 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -16.40 | 324.55 | -36.97 | 115.36 | 0.6407 | 594.0 | 498.4 | |
| 0.00 | 1.19 | 0.00 | 0.79 | -17.65 | 322.84 | -38.68 | 116.32 | 0.6667 | -582.0 | -454.7 | |
| 0.00 | 1.36 | 0.00 | 0.91 | -18.08 | 322.69 | -38.83 | 116.86 | 0.6704 | -602.0 | -570.9 | |
| 0.00 | 1.96 | 0.00 | 1.31 | -17.96 | 322.48 | -39.04 | 116.58 | 0.6723 | -601.0 | -543.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
