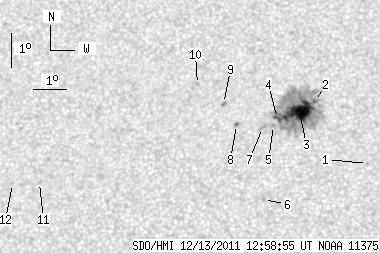

SDO HMI 2011-12-13 12:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.05 | 179.63 | 17.14 | 90.43 | 8.73 | 356.94 | -4.03 | 22.93 | 0.1789 | -857.2 | -401.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-13 12:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.43 | 7.24 | 359.20 | -1.77 | 12.55 | 0.1416 | -870.0 | -688.0 | |
| 1.11 | 165.07 | 0.56 | 83.08 | 9.09 | 357.61 | -3.36 | 18.86 | 0.1799 | -769.8 | -429.5 | |
| 29.54 | -2.00 | 14.87 | -2.00 | 8.80 | 357.16 | -3.81 | 21.77 | 0.1778 | -1318.8 | 999999 | |
| 3.06 | -2.00 | 1.54 | -2.00 | 8.59 | 356.51 | -4.46 | 25.58 | 0.1790 | -943.8 | 999999 | |
| 0.00 | 2.30 | 0.00 | 1.16 | 8.38 | 356.39 | -4.58 | 26.69 | 0.1767 | -1002.0 | -787.7 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 6.17 | 356.12 | -4.85 | 35.26 | 0.1464 | -799.0 | -642.1 | |
| 0.00 | 2.98 | 0.00 | 1.50 | 8.32 | 356.06 | -4.91 | 28.47 | 0.1784 | -714.0 | -585.6 | |
| 0.34 | 1.70 | 0.17 | 0.86 | 8.41 | 355.28 | -5.69 | 31.88 | 0.1865 | -847.2 | -714.6 | |
| 0.00 | 2.04 | 0.00 | 1.03 | 9.04 | 354.88 | -6.09 | 31.87 | 0.1993 | 1113.0 | 836.4 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 9.61 | 354.09 | -6.88 | 33.53 | 0.2148 | 912.0 | 684.5 | |
| 0.00 | 1.19 | 0.00 | 0.61 | 6.69 | 349.39 | -11.59 | 57.35 | 0.2380 | 740.0 | 626.0 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 6.66 | 348.57 | -12.40 | 59.18 | 0.2496 | 698.0 | 542.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
