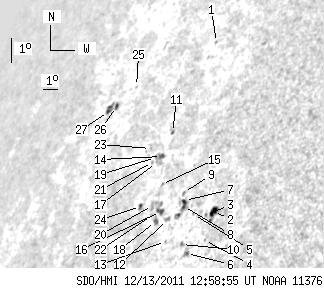

SDO HMI 2011-12-13 12:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.03 | 64.30 | 14.27 | 71.00 | 20.80 | 300.00 | -60.97 | 66.20 | 0.8940 | -118.1 | -56.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-13 12:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.87 | 25.41 | 300.13 | -60.84 | 61.17 | 0.9023 | -241.0 | -231.9 | |
| 4.77 | 7.24 | 4.67 | 7.08 | 19.93 | 303.78 | -57.19 | 66.30 | 0.8649 | -576.7 | -505.4 | |
| 0.00 | 1.11 | 0.00 | 1.10 | 19.81 | 303.38 | -57.59 | 66.54 | 0.8679 | -317.0 | -262.4 | |
| 0.00 | 0.60 | 0.00 | 0.58 | 19.02 | 303.76 | -57.21 | 67.34 | 0.8633 | -535.0 | -521.9 | |
| 0.00 | 0.77 | 0.00 | 0.78 | 19.85 | 302.64 | -58.33 | 66.67 | 0.8738 | -483.0 | -394.7 | |
| 0.00 | 2.72 | 0.00 | 2.71 | 18.62 | 302.92 | -58.05 | 67.98 | 0.8694 | -579.0 | -463.9 | |
| 0.60 | 9.79 | 0.62 | 10.16 | 20.30 | 301.82 | -59.15 | 66.35 | 0.8810 | -372.4 | -363.6 | |
| 1.11 | -7.00 | 1.15 | -7.00 | 20.11 | 301.88 | -59.09 | 66.55 | 0.8802 | -589.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 1.16 | 20.56 | 301.60 | -59.37 | 66.12 | 0.8831 | -40.0 | -100.8 | |
| 0.00 | 1.62 | 0.00 | 1.63 | 18.91 | 302.46 | -58.51 | 67.76 | 0.8735 | -427.0 | -354.4 | |
| 0.00 | 1.36 | 0.00 | 1.54 | 22.50 | 299.53 | -61.44 | 64.46 | 0.9012 | -342.0 | -251.5 | |
| 0.00 | 2.64 | 0.00 | 2.79 | 19.71 | 301.13 | -59.84 | 67.17 | 0.8852 | -399.0 | -290.6 | |
| 0.00 | 0.94 | 0.00 | 0.98 | 19.02 | 301.43 | -59.55 | 67.87 | 0.8818 | -317.0 | -254.0 | |
| 0.00 | 2.81 | 0.00 | 3.18 | 21.73 | 299.36 | -61.61 | 65.33 | 0.9011 | 240.0 | 194.3 | |
| 0.00 | 0.94 | 0.00 | 1.03 | 20.83 | 300.01 | -60.96 | 66.17 | 0.8952 | -307.0 | -183.2 | |
| 2.89 | 7.32 | 3.12 | 7.93 | 19.97 | 300.52 | -60.45 | 67.01 | 0.8901 | -287.9 | -52.2 | |
| 0.00 | 0.60 | 0.00 | 0.68 | 21.54 | 299.17 | -61.80 | 65.58 | 0.9022 | 619.0 | 612.3 | |
| 0.00 | 3.49 | 0.00 | 3.77 | 19.66 | 300.40 | -60.57 | 67.38 | 0.8905 | -275.0 | -194.2 | |
| 0.00 | 1.45 | 0.00 | 1.66 | 21.70 | 298.98 | -61.99 | 65.44 | 0.9037 | 682.0 | 648.6 | |
| 0.00 | 2.98 | 0.00 | 3.28 | 20.17 | 299.87 | -61.10 | 66.93 | 0.8951 | 357.0 | 307.1 | |
| 0.00 | 0.77 | 0.00 | 0.88 | 21.54 | 298.89 | -62.08 | 65.63 | 0.9041 | 461.0 | 466.3 | |
| 0.00 | 1.19 | 0.00 | 1.31 | 19.85 | 300.02 | -60.96 | 67.25 | 0.8936 | 347.0 | 298.7 | |
| 0.00 | 0.68 | 0.00 | 0.80 | 22.00 | 298.41 | -62.57 | 65.24 | 0.9080 | 611.0 | 515.9 | |
| 1.28 | 2.38 | 1.44 | 2.69 | 20.15 | 299.09 | -61.88 | 67.12 | 0.9006 | -162.1 | -194.2 | |
| 0.00 | 0.68 | 0.00 | 0.90 | 24.03 | 295.59 | -65.38 | 63.63 | 0.9284 | 452.0 | 390.1 | |
| 1.70 | 8.34 | 2.32 | 11.51 | 23.39 | 294.62 | -66.35 | 64.49 | 0.9332 | 377.2 | 275.8 | |
| 0.68 | -26.00 | 0.95 | -26.00 | 23.24 | 294.12 | -66.85 | 64.74 | 0.9358 | 322.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
