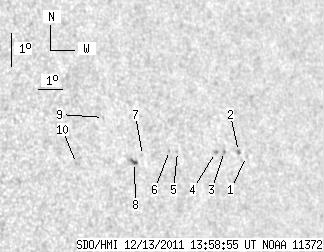

SDO HMI 2011-12-13 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.13 | 13.72 | 1.45 | 9.64 | 7.89 | 44.92 | 44.50 | 281.86 | 0.7113 | -74.7 | -179.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-13 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.88 | 7.86 | 47.95 | 47.53 | 281.19 | 0.7472 | -194.0 | -317.6 | |
| 0.00 | 1.87 | 0.00 | 1.38 | 8.01 | 47.62 | 47.20 | 281.45 | 0.7437 | -735.0 | -527.8 | |
| 0.00 | 0.94 | 0.00 | 0.68 | 8.00 | 47.01 | 46.58 | 281.56 | 0.7366 | -771.0 | -670.5 | |
| 0.00 | 1.62 | 0.00 | 1.17 | 7.97 | 46.61 | 46.19 | 281.59 | 0.7319 | -784.0 | -696.5 | |
| 0.00 | 0.60 | 0.00 | 0.42 | 7.98 | 44.99 | 44.57 | 281.95 | 0.7128 | -548.0 | -430.1 | |
| 0.00 | 0.77 | 0.00 | 0.54 | 8.01 | 44.66 | 44.24 | 282.06 | 0.7088 | -636.0 | -565.3 | |
| 0.00 | 1.19 | 0.00 | 0.82 | 7.85 | 43.53 | 43.10 | 282.09 | 0.6946 | 562.0 | 357.0 | |
| 2.13 | 3.92 | 1.45 | 2.67 | 7.64 | 43.17 | 42.75 | 281.87 | 0.6898 | 655.8 | 382.0 | |
| 0.00 | 0.68 | 0.00 | 0.46 | 8.98 | 42.10 | 41.68 | 284.07 | 0.6794 | 680.0 | 544.6 | |
| 0.00 | 0.94 | 0.00 | 0.62 | 7.59 | 40.85 | 40.43 | 282.36 | 0.6604 | 694.0 | 478.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
