SDO HMI 2011-12-13 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.54 | 61.64 | 20.04 | 67.15 | 20.92 | 299.84 | -60.58 | 65.98 | 0.8913 | -134.9 | -122.6 | |
|
previous
or next observation for the same group /

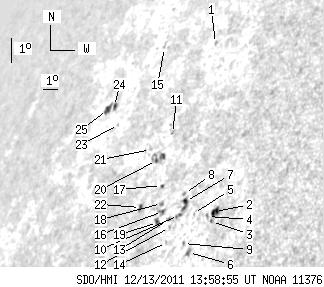

back to the solar disc SDO HMI 2011-12-13 13:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.28 | 0.00 | 1.43 | 25.37 | 300.08 | -60.34 | 61.09 | 0.8988 | -355.0 | -275.5 | |
| 3.58 | 5.19 | 3.45 | 5.01 | 19.93 | 303.76 | -56.66 | 66.17 | 0.8607 | -591.6 | -615.9 | |
| 0.00 | 1.11 | 0.00 | 1.07 | 19.62 | 303.76 | -56.66 | 66.53 | 0.8600 | -491.0 | -493.9 | |
| 0.00 | 1.53 | 0.00 | 1.49 | 19.78 | 303.44 | -56.98 | 66.43 | 0.8630 | -379.0 | -311.4 | |
| 0.00 | 0.77 | 0.00 | 0.76 | 19.88 | 302.56 | -57.86 | 66.52 | 0.8702 | -330.0 | -360.7 | |
| 0.00 | 4.00 | 0.00 | 3.92 | 18.65 | 302.95 | -57.47 | 67.82 | 0.8648 | -587.0 | -482.3 | |
| 1.79 | 5.62 | 1.83 | 5.73 | 20.27 | 301.85 | -58.58 | 66.26 | 0.8765 | -437.6 | -460.2 | |
| 0.00 | 1.28 | 0.00 | 1.31 | 20.52 | 301.63 | -58.79 | 66.03 | 0.8786 | -153.0 | -112.2 | |
| 0.00 | 1.28 | 0.00 | 1.27 | 18.94 | 302.50 | -57.92 | 67.60 | 0.8689 | -477.0 | -397.7 | |
| 0.00 | 2.38 | 0.00 | 2.44 | 19.83 | 301.69 | -58.74 | 66.79 | 0.8769 | -647.0 | -471.2 | |
| 0.00 | 0.85 | 0.00 | 0.95 | 22.46 | 299.54 | -60.88 | 64.38 | 0.8973 | -345.0 | -352.5 | |
| 0.00 | 1.11 | 0.00 | 1.14 | 19.45 | 301.36 | -59.06 | 67.28 | 0.8788 | -330.0 | -274.1 | |
| 0.00 | 1.36 | 0.00 | 1.41 | 19.71 | 301.14 | -59.28 | 67.04 | 0.8809 | -417.0 | -344.9 | |
| 0.00 | 0.85 | 0.00 | 0.87 | 18.98 | 301.45 | -58.97 | 67.79 | 0.8773 | -331.0 | -302.7 | |
| 0.00 | 0.26 | 0.00 | 0.32 | 25.28 | 296.57 | -63.85 | 61.99 | 0.9210 | 397.0 | 478.0 | |
| 1.11 | 4.17 | 1.17 | 4.41 | 19.97 | 300.61 | -59.81 | 66.88 | 0.8854 | -287.5 | -248.8 | |
| 0.85 | 1.53 | 0.92 | 1.66 | 20.79 | 300.01 | -60.42 | 66.09 | 0.8912 | -110.4 | -71.1 | |
| 0.00 | 2.04 | 0.00 | 2.18 | 20.22 | 300.38 | -60.04 | 66.64 | 0.8875 | -118.0 | -119.5 | |
| 2.04 | 4.00 | 2.16 | 4.23 | 19.62 | 300.51 | -59.91 | 67.28 | 0.8855 | -231.7 | -124.4 | |
| 0.51 | 8.43 | 0.57 | 9.43 | 21.60 | 299.11 | -61.31 | 65.41 | 0.8989 | 574.8 | 374.0 | |
| 0.00 | 1.36 | 0.00 | 1.56 | 21.96 | 298.44 | -61.98 | 65.16 | 0.9041 | 424.0 | 375.8 | |
| 1.70 | 2.30 | 1.89 | 2.55 | 20.11 | 299.10 | -61.32 | 67.04 | 0.8966 | -182.1 | -118.3 | |
| 0.00 | 0.85 | 0.00 | 1.10 | 22.80 | 295.43 | -64.99 | 64.87 | 0.9245 | 477.0 | 461.2 | |
| 1.87 | 8.09 | 2.50 | 10.91 | 23.39 | 294.56 | -65.86 | 64.40 | 0.9304 | 403.6 | 219.1 | |
| 4.09 | -24.00 | 5.55 | -24.00 | 23.30 | 294.09 | -66.33 | 64.58 | 0.9330 | 286.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
