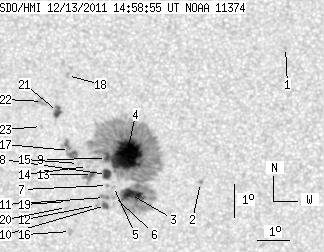

SDO HMI 2011-12-13 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 88.77 | 455.45 | 46.47 | 238.25 | -17.93 | 352.05 | -7.82 | 156.43 | 0.3254 | 928.1 | 456.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-13 14:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.43 | -14.39 | 357.27 | -2.61 | 169.48 | 0.2423 | 753.0 | 661.3 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -18.53 | 354.56 | -5.31 | 164.03 | 0.3204 | -965.0 | -826.5 | |
| 13.02 | 396.80 | 6.85 | 207.48 | -18.90 | 352.35 | -7.52 | 158.41 | 0.3380 | 1172.1 | 469.2 | |
| 56.09 | -3.00 | 29.31 | -3.00 | -17.69 | 352.28 | -7.59 | 156.74 | 0.3201 | 1417.0 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -18.65 | 351.83 | -8.04 | 156.76 | 0.3375 | 774.0 | 692.8 | |
| 0.00 | 2.55 | 0.00 | 1.35 | -18.96 | 351.81 | -8.06 | 157.10 | 0.3423 | 699.0 | 600.0 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -18.61 | 351.64 | -8.23 | 156.24 | 0.3383 | 645.0 | 529.9 | |
| 6.64 | -3.00 | 3.49 | -3.00 | -18.27 | 351.63 | -8.25 | 155.77 | 0.3333 | 889.5 | 999999 | |
| 1.19 | -3.00 | 0.62 | -3.00 | -17.78 | 351.65 | -8.22 | 155.17 | 0.3258 | 826.7 | 999999 | |
| 3.32 | 3.92 | 1.75 | 2.07 | -19.24 | 351.55 | -8.32 | 156.77 | 0.3482 | 702.2 | 641.1 | |
| 0.00 | 3.57 | 0.00 | 1.88 | -18.99 | 351.53 | -8.34 | 156.42 | 0.3446 | 860.0 | 816.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -19.24 | 351.26 | -8.61 | 156.07 | 0.3500 | 690.0 | 593.5 | |
| 2.38 | 7.06 | 1.25 | 3.72 | -18.27 | 351.19 | -8.69 | 154.65 | 0.3363 | 880.8 | 661.3 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -18.03 | 351.04 | -8.83 | 153.94 | 0.3337 | 789.0 | 650.8 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -17.93 | 350.76 | -9.11 | 153.11 | 0.3344 | 633.0 | 536.3 | |
| 0.00 | 2.98 | 0.00 | 1.59 | -20.05 | 350.39 | -9.48 | 155.01 | 0.3679 | 852.0 | 562.2 | |
| 0.00 | 14.55 | 0.00 | 7.63 | -17.53 | 350.50 | -9.37 | 151.86 | 0.3306 | 588.0 | 698.4 | |
| 0.00 | 1.79 | 0.00 | 0.93 | -15.23 | 350.55 | -9.32 | 148.16 | 0.2975 | -798.0 | -745.8 | |
| 0.00 | 0.85 | 0.00 | 0.45 | -19.11 | 350.35 | -9.52 | 153.72 | 0.3545 | 882.0 | 607.6 | |
| 0.00 | 1.70 | 0.00 | 0.90 | -19.30 | 350.31 | -9.56 | 153.87 | 0.3576 | 488.0 | 488.4 | |
| 6.13 | 6.64 | 3.20 | 3.46 | -16.33 | 350.19 | -9.68 | 149.14 | 0.3161 | -933.9 | -683.0 | |
| 0.00 | 5.45 | 0.00 | 2.84 | -16.02 | 349.74 | -10.13 | 147.45 | 0.3158 | -676.0 | -754.0 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -16.79 | 349.67 | -10.21 | 148.60 | 0.3270 | -754.0 | -610.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
