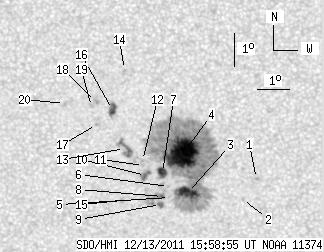

SDO HMI 2011-12-13 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 99.74 | 463.92 | 52.16 | 242.48 | -17.95 | 352.08 | -7.24 | 158.00 | 0.3221 | 898.0 | 423.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-13 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.71 | -18.47 | 354.57 | -4.75 | 165.59 | 0.3170 | -778.0 | -692.8 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -19.12 | 354.11 | -5.21 | 164.84 | 0.3294 | -797.0 | -610.5 | |
| 14.13 | 401.02 | 7.42 | 209.49 | -18.90 | 352.40 | -6.92 | 159.97 | 0.3345 | 1230.2 | 442.5 | |
| 63.32 | -3.00 | 33.04 | -3.00 | -17.69 | 352.29 | -7.03 | 158.28 | 0.3166 | 1397.4 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -19.05 | 351.82 | -7.50 | 158.65 | 0.3402 | 592.0 | 511.1 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -18.71 | 351.81 | -7.51 | 158.21 | 0.3351 | 843.0 | 653.5 | |
| 7.15 | -3.00 | 3.75 | -3.00 | -18.28 | 351.64 | -7.68 | 157.24 | 0.3296 | 895.5 | 999999 | |
| 1.70 | 20.34 | 0.90 | 10.72 | -19.02 | 351.60 | -7.72 | 158.05 | 0.3411 | 888.2 | 395.1 | |
| 3.23 | -8.00 | 1.71 | -8.00 | -19.27 | 351.53 | -7.79 | 158.15 | 0.3453 | 695.7 | 999999 | |
| 4.17 | 7.91 | 2.19 | 4.16 | -18.37 | 351.10 | -8.22 | 155.96 | 0.3345 | 774.7 | 669.9 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -18.06 | 351.05 | -8.27 | 155.43 | 0.3302 | 907.0 | 648.1 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -17.90 | 351.03 | -8.29 | 155.16 | 0.3281 | 791.0 | 654.4 | |
| 0.00 | 12.43 | 0.00 | 6.51 | -17.53 | 350.48 | -8.84 | 153.22 | 0.3266 | 584.0 | 744.0 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -15.11 | 350.59 | -8.73 | 149.59 | 0.2907 | -746.0 | -549.6 | |
| 0.00 | 1.79 | 0.00 | 0.94 | -19.14 | 350.30 | -9.02 | 154.97 | 0.3514 | 850.0 | 721.0 | |
| 6.04 | 7.23 | 3.15 | 3.77 | -16.33 | 350.17 | -9.15 | 150.53 | 0.3117 | -945.1 | -784.5 | |
| 0.00 | 1.02 | 0.00 | 0.53 | -16.79 | 349.65 | -9.68 | 149.93 | 0.3225 | -802.0 | -622.2 | |
| 0.00 | 2.04 | 0.00 | 1.06 | -16.09 | 349.65 | -9.67 | 148.75 | 0.3126 | -878.0 | -835.0 | |
| 0.00 | 1.70 | 0.00 | 0.89 | -16.24 | 349.52 | -9.80 | 148.67 | 0.3159 | -657.0 | -634.8 | |
| 0.00 | 1.70 | 0.00 | 0.89 | -16.15 | 348.68 | -10.64 | 146.41 | 0.3220 | -757.0 | -599.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
