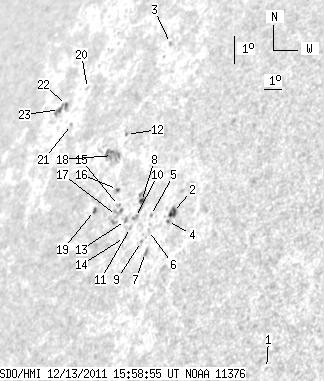

SDO HMI 2011-12-13 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.09 | 65.55 | 12.80 | 68.84 | 20.96 | 300.01 | -59.32 | 65.65 | 0.8820 | -209.4 | -44.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-13 15:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.86 | 14.99 | 310.58 | -48.74 | 69.87 | 0.7757 | 487.0 | 369.0 | |
| 4.68 | 5.79 | 4.39 | 5.42 | 19.91 | 303.81 | -55.52 | 65.90 | 0.8512 | -591.9 | -479.4 | |
| 0.00 | 1.79 | 0.00 | 1.94 | 25.38 | 300.09 | -59.23 | 60.79 | 0.8913 | -369.0 | -284.0 | |
| 0.00 | 0.85 | 0.00 | 0.80 | 19.63 | 303.68 | -55.65 | 66.25 | 0.8516 | -643.0 | -552.1 | |
| 0.00 | 1.11 | 0.00 | 1.07 | 19.83 | 302.60 | -56.72 | 66.30 | 0.8609 | -474.0 | -401.1 | |
| 0.00 | 1.02 | 0.00 | 0.98 | 19.35 | 302.75 | -56.57 | 66.80 | 0.8588 | -556.0 | -463.0 | |
| 0.00 | 2.81 | 0.00 | 2.67 | 18.66 | 302.94 | -56.38 | 67.54 | 0.8558 | -607.0 | -509.0 | |
| 1.87 | 7.91 | 1.85 | 7.85 | 20.28 | 301.82 | -57.50 | 65.99 | 0.8681 | -475.7 | -383.6 | |
| 0.00 | 1.19 | 0.00 | 1.15 | 19.01 | 302.53 | -56.79 | 67.25 | 0.8599 | -400.0 | -384.0 | |
| 0.00 | 2.47 | 0.00 | 2.44 | 19.77 | 301.76 | -57.56 | 66.57 | 0.8676 | -567.0 | -488.3 | |
| 0.00 | 1.28 | 0.00 | 1.26 | 19.46 | 301.64 | -57.68 | 66.95 | 0.8680 | -414.0 | -311.1 | |
| 0.00 | 1.19 | 0.00 | 1.28 | 22.44 | 299.50 | -59.82 | 64.15 | 0.8898 | -279.0 | -289.5 | |
| 0.00 | 2.21 | 0.00 | 2.22 | 19.69 | 301.22 | -58.10 | 66.80 | 0.8718 | -518.0 | -373.7 | |
| 0.00 | 0.94 | 0.00 | 0.93 | 19.15 | 301.46 | -57.86 | 67.34 | 0.8688 | -390.0 | -305.6 | |
| 0.00 | 1.62 | 0.00 | 1.66 | 20.17 | 300.51 | -58.81 | 66.43 | 0.8782 | -122.0 | -104.6 | |
| 0.77 | 1.36 | 0.80 | 1.42 | 20.68 | 300.13 | -59.19 | 65.95 | 0.8820 | -184.4 | 18.1 | |
| 0.00 | 6.64 | 0.00 | 6.79 | 19.85 | 300.58 | -58.74 | 66.76 | 0.8771 | -290.0 | -241.0 | |
| 0.00 | 13.11 | 0.00 | 14.23 | 21.77 | 299.08 | -60.25 | 64.98 | 0.8916 | 575.0 | 454.5 | |
| 1.79 | 2.21 | 1.91 | 2.37 | 20.02 | 299.10 | -60.22 | 66.90 | 0.8885 | -196.1 | -147.0 | |
| 0.00 | 0.60 | 0.00 | 0.74 | 23.97 | 295.60 | -63.72 | 63.37 | 0.9184 | 283.0 | 305.3 | |
| 0.00 | 1.11 | 0.00 | 1.37 | 22.81 | 295.45 | -63.87 | 64.64 | 0.9176 | 537.0 | 506.4 | |
| 1.79 | 7.23 | 2.30 | 9.39 | 23.43 | 294.52 | -64.81 | 64.15 | 0.9242 | 406.6 | 223.1 | |
| 1.19 | -22.00 | 1.55 | -22.00 | 23.31 | 294.09 | -65.23 | 64.37 | 0.9266 | 369.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
