SDO HMI 2011-12-13 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.10 | 157.78 | 14.62 | 79.26 | 8.71 | 357.02 | -1.75 | 10.35 | 0.1673 | -919.7 | -450.4 | |
|
previous
or next observation for the same group /

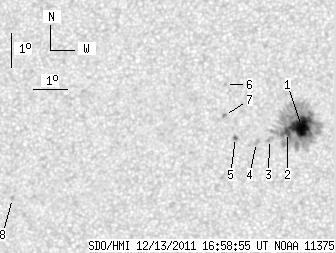

back to the solar disc SDO HMI 2011-12-13 16:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.59 | 145.70 | 12.35 | 73.18 | 8.75 | 357.26 | -1.51 | 9.02 | 0.1666 | -1364.8 | -483.8 | |
| 2.98 | -1.00 | 1.50 | -1.00 | 8.58 | 356.84 | -1.92 | 11.68 | 0.1649 | -1213.0 | 999999 | |
| 0.00 | 3.23 | 0.00 | 1.62 | 8.37 | 356.31 | -2.46 | 15.13 | 0.1635 | -752.0 | -718.4 | |
| 0.00 | 2.72 | 0.00 | 1.37 | 8.28 | 355.92 | -2.85 | 17.54 | 0.1639 | -813.0 | -662.2 | |
| 1.53 | 1.53 | 0.77 | 0.77 | 8.43 | 355.29 | -3.48 | 20.77 | 0.1699 | -799.3 | 0.0 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 10.01 | 354.98 | -3.79 | 19.35 | 0.1974 | 836.0 | 555.9 | |
| 0.00 | 1.70 | 0.00 | 0.86 | 9.08 | 354.96 | -3.81 | 21.17 | 0.1826 | 1032.0 | 824.0 | |
| 0.00 | 1.62 | 0.00 | 0.82 | 6.62 | 348.64 | -10.13 | 54.05 | 0.2169 | 943.0 | 727.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
