SDO HMI 2011-12-13 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.32 | 473.49 | 43.43 | 246.95 | -17.95 | 352.08 | -6.13 | 161.10 | 0.3156 | 956.6 | 448.9 | |
|
previous
or next observation for the same group /

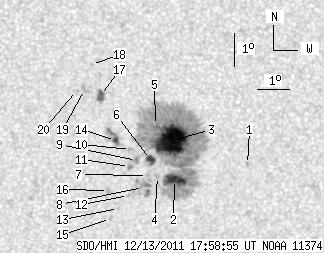

back to the solar disc SDO HMI 2011-12-13 17:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.71 | -18.44 | 354.65 | -3.56 | 169.06 | 0.3122 | -887.0 | -692.3 | |
| 12.85 | 395.63 | 6.74 | 206.17 | -18.90 | 352.36 | -5.86 | 162.85 | 0.3289 | 1248.3 | 461.7 | |
| 55.83 | -2.00 | 29.07 | -2.00 | -17.70 | 352.31 | -5.91 | 161.47 | 0.3102 | 1450.8 | 999999 | |
| 0.00 | 3.32 | 0.00 | 1.74 | -18.81 | 351.83 | -6.39 | 161.31 | 0.3301 | 812.0 | 555.6 | |
| 0.26 | -2.00 | 0.13 | -2.00 | -17.23 | 351.82 | -6.39 | 159.54 | 0.3056 | 1101.3 | 999999 | |
| 5.87 | 8.08 | 3.07 | 4.23 | -18.28 | 351.63 | -6.59 | 160.20 | 0.3230 | 966.4 | 658.1 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -18.78 | 351.52 | -6.70 | 160.43 | 0.3313 | 723.0 | 610.9 | |
| 0.00 | 20.25 | 0.00 | 10.65 | -19.15 | 351.34 | -6.87 | 160.37 | 0.3380 | 578.0 | 489.3 | |
| 0.00 | 5.02 | 0.00 | 2.63 | -18.31 | 351.19 | -7.03 | 159.04 | 0.3260 | 980.0 | 743.1 | |
| 0.00 | 2.64 | 0.00 | 1.38 | -17.97 | 351.02 | -7.20 | 158.16 | 0.3218 | 838.0 | 606.0 | |
| 0.00 | 2.98 | 0.00 | 1.56 | -18.50 | 350.96 | -7.25 | 158.64 | 0.3302 | 747.0 | 650.5 | |
| 0.00 | 1.02 | 0.00 | 0.54 | -19.40 | 350.89 | -7.32 | 159.47 | 0.3444 | -696.0 | -508.3 | |
| 0.00 | 0.94 | 0.00 | 0.50 | -19.80 | 350.56 | -7.66 | 159.07 | 0.3525 | 638.0 | 459.5 | |
| 2.55 | 13.19 | 1.33 | 6.89 | -17.69 | 350.56 | -7.66 | 156.56 | 0.3205 | 914.3 | 617.9 | |
| 0.00 | 2.47 | 0.00 | 1.31 | -20.12 | 350.29 | -7.93 | 158.74 | 0.3588 | 703.0 | 506.3 | |
| 0.00 | 2.13 | 0.00 | 1.12 | -19.24 | 350.27 | -7.95 | 157.71 | 0.3458 | 881.0 | 621.6 | |
| 5.96 | 7.40 | 3.09 | 3.85 | -16.31 | 350.15 | -8.06 | 153.46 | 0.3027 | -952.7 | -539.6 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -15.36 | 349.91 | -8.30 | 151.23 | 0.2907 | -721.0 | -533.1 | |
| 0.00 | 3.83 | 0.00 | 1.99 | -16.13 | 349.66 | -8.55 | 151.80 | 0.3038 | -916.0 | -734.8 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -16.16 | 349.41 | -8.80 | 151.17 | 0.3062 | -858.0 | -744.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
