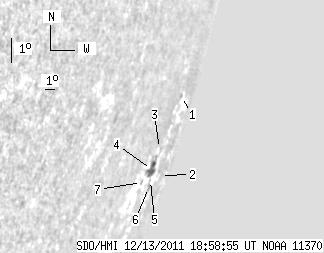

SDO HMI 2011-12-13 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.66 | 17.71 | 26.65 | 64.72 | -18.68 | 79.63 | 81.96 | 251.23 | 0.9912 | 425.8 | 187.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-13 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 5.83 | -16.49 | 80.88 | 83.22 | 253.47 | 0.9937 | 80.0 | 104.9 | |
| 0.00 | 0.85 | 0.00 | 4.39 | -18.94 | 82.08 | 84.41 | 251.04 | 0.9958 | 235.0 | 263.3 | |
| 0.00 | 0.43 | 0.00 | 1.53 | -18.12 | 79.46 | 81.80 | 251.79 | 0.9909 | 198.0 | 194.8 | |
| 7.66 | 10.81 | 26.65 | 37.65 | -18.78 | 79.23 | 81.56 | 251.12 | 0.9904 | 484.3 | 240.6 | |
| 0.00 | 0.85 | 0.00 | 3.16 | -19.12 | 79.84 | 82.17 | 250.80 | 0.9918 | 333.0 | 182.4 | |
| 0.00 | 2.13 | 0.00 | 8.19 | -19.33 | 79.93 | 82.27 | 250.59 | 0.9920 | 320.0 | 266.3 | |
| 0.00 | 1.28 | 0.00 | 3.97 | -19.20 | 78.10 | 80.44 | 250.66 | 0.9877 | -170.0 | -82.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
