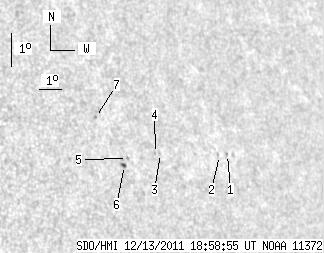

SDO HMI 2011-12-13 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.36 | 6.82 | 0.98 | 4.98 | 8.09 | 44.45 | 46.79 | 281.67 | 0.7387 | -56.7 | 31.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-13 18:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.67 | 8.05 | 47.95 | 50.29 | 280.97 | 0.7782 | -555.0 | -367.0 | |
| 0.00 | 0.60 | 0.00 | 0.46 | 8.02 | 47.57 | 49.91 | 280.99 | 0.7740 | -469.0 | -444.9 | |
| 0.00 | 0.43 | 0.00 | 0.31 | 8.05 | 44.91 | 47.24 | 281.51 | 0.7443 | -548.0 | -435.0 | |
| 0.00 | 0.85 | 0.00 | 0.63 | 8.05 | 44.68 | 47.02 | 281.55 | 0.7417 | -553.0 | -430.9 | |
| 0.00 | 1.02 | 0.00 | 0.73 | 7.89 | 43.45 | 45.78 | 281.58 | 0.7270 | 462.0 | 434.2 | |
| 1.36 | 1.96 | 0.98 | 1.40 | 7.68 | 43.29 | 45.63 | 281.33 | 0.7248 | 609.4 | 531.6 | |
| 0.00 | 1.11 | 0.00 | 0.78 | 9.11 | 42.27 | 44.61 | 283.51 | 0.7155 | 670.0 | 559.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
