SDO HMI 2011-12-13 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 25.87 | 158.37 | 12.98 | 79.55 | 8.71 | 356.93 | -0.18 | 354.56 | 0.1657 | -673.8 | -414.1 | |
|
previous
or next observation for the same group /

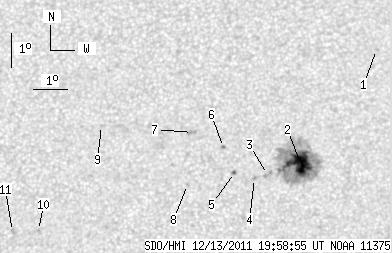

back to the solar disc SDO HMI 2011-12-13 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.61 | 12.11 | 359.57 | 2.46 | 349.28 | 0.2265 | -630.0 | -526.2 | |
| 25.44 | 140.50 | 12.77 | 70.54 | 8.71 | 357.27 | 0.16 | 359.01 | 0.1641 | -1379.6 | -494.9 | |
| 0.00 | 3.57 | 0.00 | 1.79 | 8.36 | 356.29 | -0.82 | 5.15 | 0.1585 | -603.0 | -681.6 | |
| 0.00 | 1.87 | 0.00 | 0.94 | 8.24 | 355.90 | -1.21 | 7.66 | 0.1572 | -966.0 | -772.9 | |
| 0.43 | 1.45 | 0.21 | 0.73 | 8.42 | 355.31 | -1.80 | 11.14 | 0.1620 | -815.0 | -711.1 | |
| 0.00 | 1.62 | 0.00 | 0.81 | 9.16 | 354.97 | -2.14 | 12.14 | 0.1758 | 933.0 | 766.7 | |
| 0.00 | 3.23 | 0.00 | 1.63 | 9.61 | 354.04 | -3.07 | 16.44 | 0.1872 | 824.0 | 784.3 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 8.06 | 353.91 | -3.20 | 20.00 | 0.1625 | 880.0 | 705.5 | |
| 0.00 | 1.02 | 0.00 | 0.52 | 9.83 | 351.31 | -5.80 | 28.64 | 0.2088 | 826.0 | 644.9 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 6.69 | 349.47 | -7.64 | 45.81 | 0.1850 | 945.0 | 761.3 | |
| 0.00 | 1.96 | 0.00 | 0.99 | 6.66 | 348.69 | -8.42 | 48.68 | 0.1945 | 911.0 | 716.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
