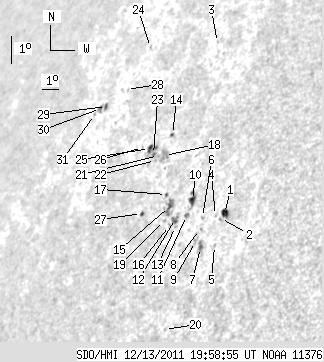

SDO HMI 2011-12-13 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.14 | 76.45 | 17.96 | 74.98 | 20.81 | 300.13 | -56.98 | 65.24 | 0.8640 | -144.4 | -112.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-13 19:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.34 | 5.11 | 3.85 | 4.53 | 19.85 | 303.80 | -53.31 | 65.34 | 0.8321 | -663.2 | -514.2 | |
| 0.00 | 1.19 | 0.00 | 1.06 | 19.69 | 303.67 | -53.44 | 65.56 | 0.8329 | -663.0 | -636.2 | |
| 0.00 | 0.85 | 0.00 | 0.87 | 25.38 | 300.06 | -57.04 | 60.18 | 0.8758 | -400.0 | -297.1 | |
| 0.00 | 0.34 | 0.00 | 0.31 | 19.79 | 303.35 | -53.76 | 65.54 | 0.8359 | -286.0 | -291.5 | |
| 0.00 | 0.68 | 0.00 | 0.60 | 18.84 | 303.75 | -53.36 | 66.53 | 0.8300 | -553.0 | -466.8 | |
| 0.00 | 1.79 | 0.00 | 1.63 | 19.73 | 302.68 | -54.43 | 65.79 | 0.8416 | -577.0 | -395.0 | |
| 0.00 | 4.94 | 0.00 | 4.43 | 18.79 | 303.04 | -54.07 | 66.79 | 0.8363 | -679.0 | -549.2 | |
| 0.00 | 0.34 | 0.00 | 0.31 | 19.36 | 302.71 | -54.40 | 66.22 | 0.8405 | -471.0 | -485.5 | |
| 0.00 | 2.38 | 0.00 | 2.16 | 18.98 | 302.68 | -54.43 | 66.67 | 0.8399 | -573.0 | -456.4 | |
| 4.17 | 7.83 | 3.89 | 7.31 | 20.28 | 301.85 | -55.26 | 65.40 | 0.8499 | -502.8 | -369.0 | |
| 0.00 | 1.96 | 0.00 | 1.83 | 19.81 | 301.77 | -55.34 | 65.96 | 0.8495 | -640.0 | -542.4 | |
| 0.00 | 5.28 | 0.00 | 4.99 | 19.72 | 301.20 | -55.91 | 66.21 | 0.8541 | -585.0 | -455.6 | |
| 0.00 | 1.11 | 0.00 | 1.04 | 19.47 | 301.33 | -55.78 | 66.46 | 0.8525 | -459.0 | -355.5 | |
| 1.28 | 1.62 | 1.29 | 1.64 | 22.41 | 299.43 | -57.68 | 63.65 | 0.8739 | -307.9 | -211.0 | |
| 1.53 | 10.38 | 1.47 | 9.99 | 20.10 | 300.65 | -56.46 | 65.92 | 0.8595 | -247.8 | -208.6 | |
| 0.00 | 0.94 | 0.00 | 0.89 | 19.50 | 300.98 | -56.13 | 66.52 | 0.8555 | -224.0 | -209.8 | |
| 0.00 | 1.28 | 0.00 | 1.24 | 20.49 | 300.26 | -56.85 | 65.58 | 0.8634 | -128.0 | -86.7 | |
| 0.00 | 7.06 | 0.00 | 7.12 | 21.74 | 299.38 | -57.73 | 64.40 | 0.8729 | 207.0 | 135.7 | |
| 0.00 | 1.28 | 0.00 | 1.23 | 19.66 | 300.60 | -56.51 | 66.43 | 0.8589 | -229.0 | -152.1 | |
| 0.00 | 0.85 | 0.00 | 0.77 | 16.25 | 302.24 | -54.87 | 69.96 | 0.8380 | -337.0 | -219.1 | |
| 0.00 | 1.36 | 0.00 | 1.39 | 21.74 | 299.02 | -58.09 | 64.49 | 0.8757 | 645.0 | 569.4 | |
| 0.00 | 0.94 | 0.00 | 0.95 | 21.58 | 298.94 | -58.17 | 64.69 | 0.8760 | 404.0 | 405.5 | |
| 0.00 | 1.45 | 0.00 | 1.49 | 21.78 | 298.69 | -58.42 | 64.53 | 0.8782 | 685.0 | 644.1 | |
| 0.00 | 1.11 | 0.00 | 1.27 | 25.27 | 295.85 | -61.25 | 61.41 | 0.9048 | 381.0 | 307.2 | |
| 2.81 | 5.36 | 2.92 | 5.55 | 21.97 | 298.31 | -58.80 | 64.41 | 0.8814 | 640.3 | 657.2 | |
| 0.00 | 1.02 | 0.00 | 1.08 | 22.01 | 297.85 | -59.26 | 64.48 | 0.8849 | 401.0 | 326.5 | |
| 1.28 | 1.45 | 1.28 | 1.45 | 19.90 | 299.13 | -57.98 | 66.52 | 0.8713 | -152.3 | -246.3 | |
| 0.00 | 0.51 | 0.00 | 0.59 | 23.91 | 295.37 | -61.74 | 62.99 | 0.9056 | 464.0 | 501.7 | |
| 1.62 | 2.04 | 1.93 | 2.43 | 23.37 | 294.42 | -62.68 | 63.78 | 0.9109 | 342.5 | 320.6 | |
| 1.11 | 2.81 | 1.33 | 3.38 | 23.31 | 294.05 | -63.06 | 63.93 | 0.9133 | 339.2 | 313.6 | |
| 0.00 | 1.19 | 0.00 | 1.45 | 23.12 | 293.78 | -63.33 | 64.19 | 0.9147 | 185.0 | 151.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
