SDO HMI 2011-12-13 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.23 | 20.35 | 1.94 | 12.50 | -17.63 | 324.01 | -32.55 | 119.78 | 0.5927 | -12.7 | -103.3 | |
|
previous
or next observation for the same group /

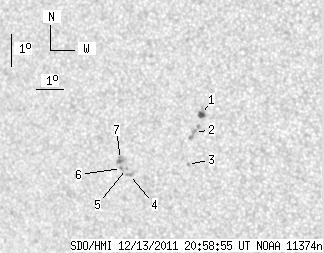

back to the solar disc SDO HMI 2011-12-13 20:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.23 | 5.62 | 1.94 | 3.37 | -16.70 | 325.60 | -30.96 | 119.39 | 0.5677 | 897.3 | 641.6 | |
| 0.00 | 4.51 | 0.00 | 2.73 | -17.25 | 325.24 | -31.31 | 120.02 | 0.5755 | 693.0 | 639.8 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -18.24 | 324.79 | -31.76 | 121.24 | 0.5870 | 636.0 | 500.8 | |
| 0.00 | 2.98 | 0.00 | 1.87 | -18.54 | 322.58 | -33.98 | 120.20 | 0.6154 | -905.0 | -707.3 | |
| 0.00 | 0.94 | 0.00 | 0.59 | -18.35 | 322.51 | -34.05 | 119.88 | 0.6152 | -815.0 | -679.5 | |
| 0.00 | 1.45 | 0.00 | 0.91 | -18.35 | 322.32 | -34.24 | 119.76 | 0.6175 | -755.0 | -606.4 | |
| 0.00 | 3.91 | 0.00 | 2.46 | -18.07 | 322.34 | -34.21 | 119.36 | 0.6156 | -696.0 | -719.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
