SDO HMI 2011-12-13 22:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.77 | 449.77 | 43.52 | 233.64 | -18.04 | 352.12 | -3.34 | 169.49 | 0.3046 | 1013.6 | 459.4 | |
|
previous
or next observation for the same group /

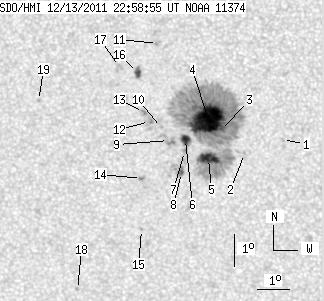

back to the solar disc SDO HMI 2011-12-13 22:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.75 | -18.34 | 354.63 | -0.83 | 177.41 | 0.3047 | -851.0 | -587.1 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -18.78 | 353.44 | -2.01 | 173.88 | 0.3134 | -598.0 | -461.8 | |
| 0.77 | 399.19 | 0.40 | 207.27 | -18.06 | 352.70 | -2.75 | 171.31 | 0.3032 | 1060.7 | 462.3 | |
| 55.92 | -3.00 | 29.01 | -3.00 | -17.72 | 352.34 | -3.12 | 169.97 | 0.2986 | 1442.6 | 999999 | |
| 15.24 | -3.00 | 7.96 | -3.00 | -18.93 | 352.31 | -3.14 | 170.60 | 0.3185 | 1154.6 | 999999 | |
| 6.64 | -3.00 | 3.46 | -3.00 | -18.34 | 351.61 | -3.84 | 168.14 | 0.3110 | 959.9 | 999999 | |
| 0.00 | 2.21 | 0.00 | 1.16 | -18.71 | 351.57 | -3.88 | 168.28 | 0.3172 | 853.0 | 721.0 | |
| 0.77 | 11.92 | 0.40 | 6.24 | -19.37 | 351.46 | -3.99 | 168.40 | 0.3281 | 848.8 | 669.1 | |
| 0.00 | 9.62 | 0.00 | 5.01 | -18.37 | 351.08 | -4.37 | 166.59 | 0.3134 | 608.0 | 710.2 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -17.97 | 350.87 | -4.58 | 165.64 | 0.3078 | 926.0 | 721.6 | |
| 0.00 | 2.30 | 0.00 | 1.18 | -15.39 | 350.81 | -4.64 | 162.90 | 0.2665 | -777.0 | -651.1 | |
| 0.00 | 5.11 | 0.00 | 2.66 | -17.79 | 350.50 | -4.95 | 164.37 | 0.3064 | 748.0 | 489.0 | |
| 0.00 | 2.81 | 0.00 | 1.46 | -17.51 | 350.32 | -5.13 | 163.57 | 0.3028 | 842.0 | 666.2 | |
| 0.00 | 2.38 | 0.00 | 1.25 | -19.55 | 350.20 | -5.25 | 165.05 | 0.3359 | 1051.0 | 774.0 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -21.15 | 350.14 | -5.31 | 166.13 | 0.3615 | 814.0 | 657.0 | |
| 4.43 | 5.36 | 2.29 | 2.77 | -16.28 | 350.17 | -5.28 | 161.79 | 0.2840 | -962.7 | -853.7 | |
| 0.00 | 2.13 | 0.00 | 1.10 | -16.09 | 349.62 | -5.83 | 159.81 | 0.2841 | -815.0 | -686.8 | |
| 0.00 | 1.02 | 0.00 | 0.55 | -23.05 | 348.01 | -7.45 | 162.59 | 0.4003 | 858.0 | 731.9 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -17.13 | 347.07 | -8.38 | 153.79 | 0.3168 | 830.0 | 620.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
