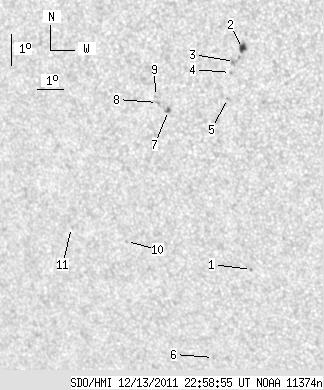

SDO HMI 2011-12-13 22:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.45 | 21.55 | 3.26 | 13.17 | -18.65 | 323.87 | -31.58 | 121.87 | 0.5870 | -40.9 | 1.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-13 22:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.64 | -23.61 | 324.51 | -30.95 | 129.67 | 0.6145 | -712.0 | -626.1 | |
| 4.09 | 5.96 | 2.42 | 3.53 | -16.69 | 325.67 | -29.78 | 120.20 | 0.5526 | 907.9 | 751.4 | |
| 0.00 | 4.43 | 0.00 | 2.64 | -17.09 | 325.32 | -30.13 | 120.59 | 0.5596 | 772.0 | 609.4 | |
| 0.00 | 1.28 | 0.00 | 0.76 | -17.42 | 325.12 | -30.34 | 120.98 | 0.5643 | 707.0 | 549.3 | |
| 0.00 | 0.51 | 0.00 | 0.31 | -18.23 | 324.85 | -30.60 | 122.05 | 0.5726 | 565.0 | 470.5 | |
| 0.00 | 1.11 | 0.00 | 0.73 | -26.45 | 322.21 | -33.25 | 131.63 | 0.6590 | -651.0 | -566.2 | |
| 1.36 | 2.30 | 0.84 | 1.42 | -18.59 | 322.62 | -32.83 | 121.01 | 0.6019 | -842.0 | -754.0 | |
| 0.00 | 2.13 | 0.00 | 1.32 | -18.34 | 322.27 | -33.19 | 120.40 | 0.6047 | -605.0 | -547.4 | |
| 0.00 | 1.19 | 0.00 | 0.74 | -18.15 | 322.23 | -33.22 | 120.09 | 0.6040 | -810.0 | -670.9 | |
| 0.00 | 0.68 | 0.00 | 0.45 | -22.69 | 319.96 | -35.49 | 125.10 | 0.6571 | -660.0 | -528.4 | |
| 0.00 | 0.94 | 0.00 | 0.63 | -22.23 | 317.91 | -37.54 | 123.21 | 0.6765 | -597.0 | -453.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
