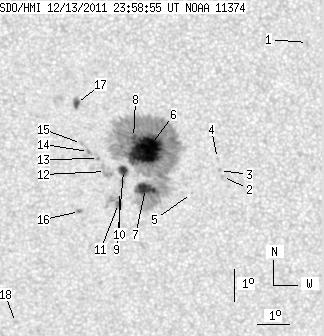

SDO HMI 2011-12-13 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 78.40 | 435.05 | 40.71 | 225.89 | -18.01 | 352.22 | -2.69 | 171.51 | 0.3021 | 1049.9 | 480.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-13 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.19 | 0.00 | 0.61 | -14.43 | 357.29 | 2.39 | 189.67 | 0.2417 | 921.0 | 639.5 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -18.54 | 354.70 | -0.20 | 179.38 | 0.3076 | -928.0 | -639.7 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -18.36 | 354.61 | -0.29 | 179.08 | 0.3045 | -824.0 | -605.6 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -17.99 | 354.54 | -0.36 | 178.86 | 0.2983 | 780.0 | 536.7 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -19.07 | 353.73 | -1.17 | 176.49 | 0.3170 | -758.0 | -553.8 | |
| 50.73 | 384.15 | 26.30 | 199.35 | -17.74 | 352.35 | -2.56 | 171.75 | 0.2972 | 1464.0 | 479.2 | |
| 11.92 | -6.00 | 6.22 | -6.00 | -18.91 | 352.30 | -2.60 | 172.17 | 0.3167 | 1207.2 | 999999 | |
| 1.96 | -6.00 | 1.01 | -6.00 | -17.34 | 351.95 | -2.95 | 170.25 | 0.2916 | 1215.6 | 999999 | |
| 6.13 | 10.98 | 3.19 | 5.72 | -18.36 | 351.62 | -3.28 | 169.84 | 0.3093 | 1014.0 | 709.2 | |
| 0.00 | 0.85 | 0.00 | 0.44 | -19.01 | 351.48 | -3.42 | 169.82 | 0.3204 | 889.0 | 691.3 | |
| 2.72 | 11.75 | 1.43 | 6.15 | -19.38 | 351.44 | -3.46 | 169.92 | 0.3266 | 653.1 | 641.9 | |
| 0.00 | 6.47 | 0.00 | 3.37 | -18.39 | 351.06 | -3.84 | 168.17 | 0.3116 | 695.0 | 761.6 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -17.98 | 350.85 | -4.05 | 167.25 | 0.3058 | 931.0 | 722.2 | |
| 0.00 | 2.38 | 0.00 | 1.24 | -17.77 | 350.55 | -4.36 | 166.15 | 0.3035 | 930.0 | 682.2 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -17.52 | 350.33 | -4.57 | 165.29 | 0.3003 | 928.0 | 715.4 | |
| 1.11 | 2.21 | 0.58 | 1.16 | -19.63 | 350.21 | -4.69 | 166.65 | 0.3347 | 798.2 | 738.6 | |
| 3.83 | 5.70 | 1.98 | 2.94 | -16.29 | 350.21 | -4.69 | 163.71 | 0.2811 | -950.4 | -855.6 | |
| 0.00 | 1.96 | 0.00 | 1.06 | -23.13 | 348.04 | -6.86 | 163.92 | 0.3987 | 738.0 | 542.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
