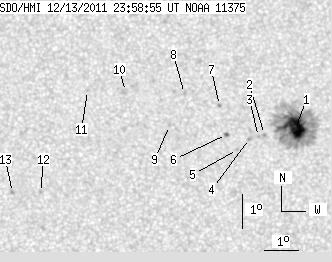

SDO HMI 2011-12-13 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24.17 | 164.97 | 12.14 | 82.90 | 8.60 | 356.85 | 1.95 | 348.31 | 0.1680 | -641.7 | -387.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-13 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 22.81 | 146.66 | 11.46 | 73.69 | 8.60 | 357.30 | 2.40 | 345.63 | 0.1677 | -1420.2 | -471.3 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 8.39 | 356.38 | 1.48 | 350.85 | 0.1609 | -967.0 | -651.9 | |
| 0.00 | 1.11 | 0.00 | 0.56 | 8.33 | 356.20 | 1.30 | 351.89 | 0.1594 | -917.0 | -727.3 | |
| 0.00 | 1.79 | 0.00 | 0.90 | 8.27 | 355.93 | 1.03 | 353.51 | 0.1578 | -1039.0 | -802.5 | |
| 0.00 | 0.68 | 0.00 | 0.34 | 7.94 | 355.57 | 0.67 | 355.59 | 0.1516 | -878.0 | -615.2 | |
| 1.36 | 1.53 | 0.68 | 0.77 | 8.39 | 355.24 | 0.34 | 357.85 | 0.1590 | -708.4 | -617.0 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 9.25 | 355.04 | 0.13 | 359.23 | 0.1739 | 892.0 | 703.5 | |
| 0.00 | 1.70 | 0.00 | 0.86 | 9.61 | 353.99 | -0.91 | 5.00 | 0.1808 | 940.0 | 710.4 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 8.65 | 353.54 | -1.36 | 8.19 | 0.1652 | 797.0 | 588.0 | |
| 0.00 | 3.83 | 0.00 | 1.93 | 9.67 | 352.22 | -2.68 | 14.33 | 0.1869 | 469.0 | 398.9 | |
| 0.00 | 0.94 | 0.00 | 0.47 | 9.70 | 351.08 | -3.82 | 19.95 | 0.1932 | 799.0 | 565.2 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 6.66 | 349.71 | -5.19 | 35.00 | 0.1573 | 851.0 | 617.5 | |
| 0.00 | 1.96 | 0.00 | 0.98 | 6.66 | 348.88 | -6.02 | 39.09 | 0.1661 | 961.0 | 677.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
