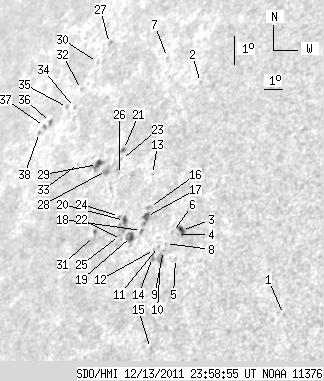

SDO HMI 2011-12-13 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.33 | 87.00 | 17.79 | 81.02 | 20.96 | 300.00 | -54.90 | 64.50 | 0.8473 | -157.3 | -91.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-13 23:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.85 | 0.00 | 0.63 | 17.12 | 309.61 | -45.29 | 65.98 | 0.7459 | 567.0 | 444.8 | |
| 0.00 | 0.77 | 0.00 | 0.69 | 24.56 | 302.32 | -52.58 | 59.67 | 0.8390 | -509.0 | -460.8 | |
| 3.32 | 4.43 | 2.80 | 3.74 | 19.80 | 303.82 | -51.08 | 64.69 | 0.8120 | -685.7 | -645.2 | |
| 0.00 | 0.51 | 0.00 | 0.43 | 19.68 | 303.67 | -51.23 | 64.89 | 0.8130 | -710.0 | -634.0 | |
| 0.00 | 0.51 | 0.00 | 0.43 | 18.92 | 303.90 | -51.00 | 65.71 | 0.8087 | -595.0 | -521.2 | |
| 0.00 | 0.60 | 0.00 | 0.51 | 19.75 | 303.39 | -51.51 | 64.90 | 0.8158 | -350.0 | -337.3 | |
| 0.00 | 0.85 | 0.00 | 0.82 | 25.41 | 299.95 | -54.95 | 59.50 | 0.8603 | -335.0 | -272.8 | |
| 0.00 | 1.02 | 0.00 | 0.87 | 19.40 | 303.19 | -51.71 | 65.37 | 0.8166 | -546.0 | -491.1 | |
| 0.00 | 0.85 | 0.00 | 0.73 | 19.18 | 303.19 | -51.71 | 65.63 | 0.8161 | -627.0 | -555.9 | |
| 0.00 | 5.96 | 0.00 | 5.08 | 18.93 | 303.15 | -51.75 | 65.94 | 0.8158 | -757.0 | -606.8 | |
| 0.00 | 0.85 | 0.00 | 0.73 | 19.31 | 302.88 | -52.02 | 65.57 | 0.8193 | -480.0 | -396.5 | |
| 0.00 | 0.51 | 0.00 | 0.44 | 19.22 | 302.71 | -52.19 | 65.73 | 0.8205 | -504.0 | -426.7 | |
| 0.00 | 0.94 | 0.00 | 0.85 | 21.61 | 301.43 | -53.47 | 63.34 | 0.8382 | -335.0 | -311.4 | |
| 0.00 | 2.47 | 0.00 | 2.12 | 18.97 | 302.72 | -52.18 | 66.02 | 0.8198 | -576.0 | -498.1 | |
| 0.00 | 1.62 | 0.00 | 1.34 | 16.13 | 303.77 | -51.13 | 69.12 | 0.8028 | -607.0 | -454.7 | |
| 0.00 | 2.55 | 0.00 | 2.27 | 20.55 | 301.82 | -53.08 | 64.44 | 0.8320 | -443.0 | -348.5 | |
| 3.75 | 7.66 | 3.32 | 6.78 | 20.27 | 301.80 | -53.10 | 64.77 | 0.8314 | -519.4 | -379.8 | |
| 1.19 | 1.79 | 1.05 | 1.58 | 19.83 | 301.75 | -53.15 | 65.30 | 0.8307 | -548.3 | -475.3 | |
| 2.81 | 6.47 | 2.51 | 5.79 | 19.64 | 301.31 | -53.59 | 65.64 | 0.8341 | -570.6 | -459.9 | |
| 2.13 | 9.36 | 1.93 | 8.50 | 20.16 | 300.68 | -54.22 | 65.23 | 0.8409 | -367.0 | -227.8 | |
| 0.77 | 1.28 | 0.73 | 1.22 | 22.43 | 299.36 | -55.54 | 63.02 | 0.8574 | -383.8 | -357.2 | |
| 0.00 | 1.02 | 0.00 | 0.92 | 19.56 | 300.82 | -54.08 | 65.89 | 0.8382 | -223.0 | -172.8 | |
| 0.00 | 0.94 | 0.00 | 0.89 | 22.11 | 299.44 | -55.46 | 63.36 | 0.8560 | -226.0 | -280.8 | |
| 0.00 | 1.02 | 0.00 | 0.94 | 20.29 | 300.34 | -54.56 | 65.18 | 0.8441 | -159.0 | -95.8 | |
| 0.00 | 1.19 | 0.00 | 1.08 | 19.68 | 300.65 | -54.25 | 65.79 | 0.8400 | 101.0 | 68.3 | |
| 0.00 | 0.68 | 0.00 | 0.64 | 21.63 | 299.61 | -55.30 | 63.85 | 0.8534 | -157.0 | -209.2 | |
| 0.00 | 1.96 | 0.00 | 2.11 | 25.92 | 296.07 | -58.84 | 60.08 | 0.8899 | 527.0 | 486.9 | |
| 0.00 | 4.34 | 0.00 | 4.19 | 21.77 | 298.79 | -56.11 | 63.93 | 0.8604 | 441.0 | 432.9 | |
| 4.00 | 9.36 | 3.93 | 9.20 | 21.96 | 298.14 | -56.76 | 63.88 | 0.8659 | 697.0 | 506.5 | |
| 0.00 | 0.85 | 0.00 | 0.92 | 25.30 | 295.80 | -59.10 | 60.83 | 0.8904 | 313.0 | 258.1 | |
| 0.00 | 3.75 | 0.00 | 3.52 | 19.70 | 299.27 | -55.63 | 66.14 | 0.8518 | -407.0 | -199.8 | |
| 0.00 | 1.11 | 0.00 | 1.20 | 24.42 | 295.46 | -59.44 | 61.87 | 0.8910 | 391.0 | 315.8 | |
| 0.00 | 0.68 | 0.00 | 0.69 | 22.01 | 296.99 | -57.92 | 64.13 | 0.8750 | 286.0 | 266.4 | |
| 0.00 | 1.02 | 0.00 | 1.10 | 23.83 | 295.46 | -59.44 | 62.51 | 0.8898 | 560.0 | 496.2 | |
| 0.00 | 1.36 | 0.00 | 1.49 | 23.84 | 295.01 | -59.90 | 62.62 | 0.8931 | 360.0 | 239.9 | |
| 1.36 | 2.13 | 1.52 | 2.37 | 23.36 | 294.26 | -60.64 | 63.32 | 0.8974 | 376.6 | 343.0 | |
| 0.00 | 2.04 | 0.00 | 2.29 | 23.24 | 293.96 | -60.94 | 63.52 | 0.8992 | 444.0 | 377.9 | |
| 0.00 | 1.70 | 0.00 | 1.92 | 23.05 | 293.77 | -61.13 | 63.77 | 0.9001 | 369.0 | 262.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
