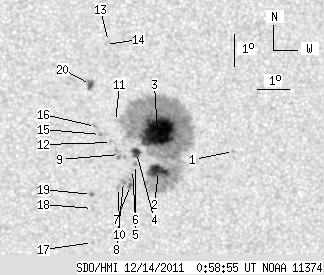

SDO HMI 2011-12-14 00:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.88 | 453.40 | 44.03 | 235.29 | -18.03 | 352.14 | -2.21 | 172.98 | 0.3013 | 1020.9 | 441.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-14 00:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.71 | -18.34 | 354.65 | 0.30 | 180.93 | 0.3040 | -881.0 | -547.8 | |
| 13.96 | 414.32 | 7.28 | 214.95 | -18.93 | 352.31 | -2.04 | 173.85 | 0.3156 | 1143.9 | 435.6 | |
| 59.85 | -2.00 | 31.02 | -2.00 | -17.75 | 352.29 | -2.06 | 173.34 | 0.2962 | 1416.6 | 999999 | |
| 5.79 | -2.00 | 3.01 | -2.00 | -18.37 | 351.63 | -2.72 | 171.55 | 0.3078 | 985.0 | 999999 | |
| 0.00 | 2.04 | 0.00 | 1.07 | -18.74 | 351.60 | -2.76 | 171.63 | 0.3141 | 895.0 | 776.0 | |
| 0.00 | 1.19 | 0.00 | 0.62 | -18.89 | 351.50 | -2.85 | 171.42 | 0.3168 | 792.0 | 592.4 | |
| 1.02 | 4.34 | 0.53 | 2.27 | -19.39 | 351.43 | -2.92 | 171.45 | 0.3252 | 757.2 | 712.4 | |
| 0.00 | 2.38 | 0.00 | 1.25 | -19.27 | 351.21 | -3.14 | 170.77 | 0.3237 | 900.0 | 742.0 | |
| 0.00 | 7.24 | 0.00 | 3.77 | -18.43 | 351.10 | -3.25 | 169.98 | 0.3103 | 757.0 | 734.2 | |
| 0.00 | 2.64 | 0.00 | 1.38 | -19.45 | 351.05 | -3.30 | 170.41 | 0.3272 | 665.0 | 589.7 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -17.41 | 351.00 | -3.35 | 169.00 | 0.2939 | 62.0 | 44.0 | |
| 0.00 | 2.30 | 0.00 | 1.19 | -18.06 | 350.86 | -3.49 | 169.01 | 0.3049 | 597.0 | 601.4 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -14.96 | 350.82 | -3.53 | 166.42 | 0.2542 | -854.0 | -605.0 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -15.05 | 350.73 | -3.62 | 166.16 | 0.2561 | -674.0 | -556.2 | |
| 0.00 | 1.53 | 0.00 | 0.80 | -17.81 | 350.52 | -3.83 | 167.80 | 0.3020 | 870.0 | 681.1 | |
| 0.00 | 2.13 | 0.00 | 1.10 | -17.56 | 350.37 | -3.98 | 167.14 | 0.2985 | 927.0 | 661.7 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -21.18 | 350.19 | -4.16 | 169.04 | 0.3576 | 639.0 | 425.1 | |
| 0.00 | 1.79 | 0.00 | 0.94 | -20.11 | 350.22 | -4.13 | 168.48 | 0.3403 | 710.0 | 551.4 | |
| 0.43 | 1.28 | 0.22 | 0.67 | -19.67 | 350.20 | -4.15 | 168.14 | 0.3333 | 866.6 | 766.5 | |
| 3.83 | 4.85 | 1.97 | 2.50 | -16.27 | 350.25 | -4.10 | 165.63 | 0.2780 | -929.7 | -899.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
