SDO HMI 2011-12-14 00:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27.58 | 153.14 | 13.86 | 76.98 | 8.57 | 357.03 | 2.68 | 344.15 | 0.1700 | -865.9 | -405.1 | |
|
previous
or next observation for the same group /

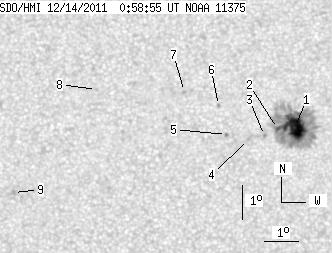

back to the solar disc SDO HMI 2011-12-14 00:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.22 | 144.63 | 13.18 | 72.69 | 8.59 | 357.29 | 2.94 | 342.58 | 0.1703 | -1373.0 | -447.5 | |
| 1.36 | -1.00 | 0.68 | -1.00 | 8.56 | 356.78 | 2.43 | 345.40 | 0.1674 | -884.9 | 999999 | |
| 0.00 | 0.85 | 0.00 | 0.43 | 8.35 | 356.40 | 2.04 | 347.38 | 0.1623 | -937.0 | -796.7 | |
| 0.00 | 0.68 | 0.00 | 0.34 | 8.23 | 355.92 | 1.57 | 350.13 | 0.1586 | -1032.0 | -843.6 | |
| 0.00 | 1.28 | 0.00 | 0.64 | 8.38 | 355.26 | 0.91 | 354.32 | 0.1597 | -843.0 | -703.2 | |
| 0.00 | 1.19 | 0.00 | 0.60 | 9.24 | 355.03 | 0.67 | 356.16 | 0.1743 | 901.0 | 716.3 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 9.66 | 354.01 | -0.34 | 1.87 | 0.1812 | 933.0 | 683.8 | |
| 0.00 | 0.77 | 0.00 | 0.39 | 9.72 | 351.37 | -2.98 | 15.77 | 0.1893 | 764.0 | 620.6 | |
| 0.00 | 2.38 | 0.00 | 1.20 | 6.65 | 348.93 | -5.42 | 36.21 | 0.1597 | 850.0 | 590.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
