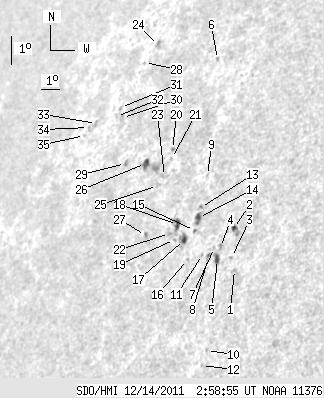

SDO HMI 2011-12-14 02:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.38 | 86.16 | 15.94 | 77.36 | 21.09 | 299.86 | -53.40 | 63.90 | 0.8350 | -172.7 | -42.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-14 02:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.48 | 18.58 | 304.25 | -49.01 | 65.47 | 0.7888 | -612.0 | -605.1 | |
| 1.87 | 5.28 | 1.53 | 4.31 | 19.87 | 303.67 | -49.58 | 64.10 | 0.7983 | -649.6 | -600.4 | |
| 0.00 | 1.19 | 0.00 | 0.96 | 18.95 | 303.96 | -49.30 | 65.11 | 0.7928 | -674.0 | -550.1 | |
| 0.00 | 1.87 | 0.00 | 1.54 | 19.28 | 303.29 | -49.96 | 64.94 | 0.8001 | -548.0 | -484.5 | |
| 3.32 | 4.85 | 2.72 | 3.98 | 18.90 | 303.30 | -49.95 | 65.39 | 0.7989 | -638.3 | -643.7 | |
| 0.00 | 1.19 | 0.00 | 1.10 | 25.35 | 299.96 | -53.29 | 59.02 | 0.8472 | -401.0 | -291.7 | |
| 0.00 | 1.11 | 0.00 | 0.92 | 19.28 | 302.99 | -50.26 | 65.04 | 0.8029 | -387.0 | -376.8 | |
| 0.00 | 2.55 | 0.00 | 2.12 | 18.97 | 302.83 | -50.42 | 65.46 | 0.8036 | -499.0 | -484.6 | |
| 0.00 | 1.11 | 0.00 | 0.96 | 21.57 | 301.58 | -51.67 | 62.79 | 0.8225 | -397.0 | -333.8 | |
| 0.00 | 1.02 | 0.00 | 0.81 | 16.07 | 303.83 | -49.42 | 68.69 | 0.7858 | -524.0 | -453.0 | |
| 0.00 | 1.02 | 0.00 | 0.85 | 19.06 | 302.49 | -50.76 | 65.45 | 0.8070 | -441.0 | -370.3 | |
| 0.00 | 1.11 | 0.00 | 0.88 | 15.60 | 303.75 | -49.51 | 69.28 | 0.7854 | -618.0 | -471.5 | |
| 0.00 | 1.96 | 0.00 | 1.68 | 20.55 | 301.72 | -51.53 | 63.94 | 0.8184 | -320.0 | -297.5 | |
| 2.89 | 5.96 | 2.47 | 5.09 | 20.24 | 301.77 | -51.49 | 64.29 | 0.8170 | -539.9 | -523.3 | |
| 0.00 | 0.94 | 0.00 | 0.80 | 19.83 | 301.75 | -51.50 | 64.78 | 0.8160 | -695.0 | -653.9 | |
| 0.00 | 1.11 | 0.00 | 0.94 | 18.92 | 301.81 | -51.45 | 65.85 | 0.8130 | -557.0 | -413.2 | |
| 2.72 | 5.02 | 2.34 | 4.32 | 19.55 | 301.37 | -51.88 | 65.23 | 0.8187 | -583.6 | -538.4 | |
| 3.83 | 8.43 | 3.34 | 7.36 | 20.03 | 300.79 | -52.47 | 64.85 | 0.8253 | -436.6 | -239.6 | |
| 0.00 | 1.02 | 0.00 | 0.89 | 19.55 | 300.86 | -52.40 | 65.38 | 0.8234 | -280.0 | -223.6 | |
| 0.00 | 1.53 | 0.00 | 1.41 | 22.43 | 299.26 | -53.99 | 62.54 | 0.8448 | -431.0 | -325.1 | |
| 0.00 | 0.77 | 0.00 | 0.70 | 22.14 | 299.37 | -53.88 | 62.84 | 0.8431 | -273.0 | -321.7 | |
| 0.00 | 1.62 | 0.00 | 1.42 | 19.75 | 300.51 | -52.75 | 65.26 | 0.8271 | 279.0 | 216.8 | |
| 0.00 | 2.72 | 0.00 | 2.49 | 21.57 | 299.31 | -53.94 | 63.51 | 0.8421 | 163.0 | 41.0 | |
| 0.00 | 4.09 | 0.00 | 4.18 | 25.85 | 296.21 | -57.05 | 59.64 | 0.8771 | 545.0 | 411.4 | |
| 0.00 | 2.38 | 0.00 | 2.18 | 21.28 | 299.09 | -54.17 | 63.91 | 0.8433 | 78.0 | 73.0 | |
| 3.75 | 12.94 | 3.54 | 12.12 | 22.00 | 298.02 | -55.24 | 63.40 | 0.8539 | 718.9 | 482.4 | |
| 0.00 | 2.13 | 0.00 | 1.92 | 19.70 | 299.26 | -53.99 | 65.68 | 0.8379 | -465.0 | -290.6 | |
| 0.00 | 1.19 | 0.00 | 1.23 | 25.30 | 295.77 | -57.48 | 60.37 | 0.8790 | 405.0 | 309.2 | |
| 0.00 | 1.87 | 0.00 | 1.82 | 22.01 | 296.87 | -56.39 | 63.71 | 0.8632 | 488.0 | 392.4 | |
| 0.00 | 2.13 | 0.00 | 2.17 | 23.51 | 295.72 | -57.53 | 62.36 | 0.8754 | 608.0 | 539.5 | |
| 0.00 | 1.19 | 0.00 | 1.23 | 23.84 | 295.37 | -57.89 | 62.09 | 0.8787 | 426.0 | 361.1 | |
| 0.00 | 0.94 | 0.00 | 0.96 | 23.54 | 295.33 | -57.92 | 62.42 | 0.8784 | 575.0 | 522.1 | |
| 0.00 | 1.96 | 0.00 | 2.08 | 23.33 | 294.24 | -59.01 | 62.94 | 0.8859 | 591.0 | 387.2 | |
| 0.00 | 0.51 | 0.00 | 0.55 | 23.21 | 293.83 | -59.43 | 63.18 | 0.8886 | 219.0 | 189.5 | |
| 0.00 | 0.85 | 0.00 | 0.91 | 22.95 | 293.76 | -59.50 | 63.48 | 0.8886 | 326.0 | 278.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
