SDO HMI 2011-12-14 04:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.81 | 18.57 | 1.64 | 11.12 | -19.10 | 322.98 | -29.19 | 124.46 | 0.5610 | -298.5 | -336.8 | |
|
previous
or next observation for the same group /

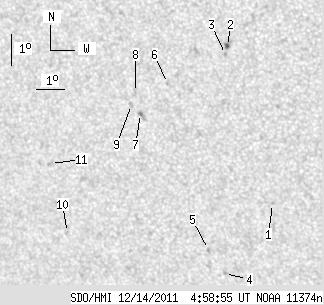

back to the solar disc SDO HMI 2011-12-14 04:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.55 | -21.43 | 326.68 | -25.48 | 131.49 | 0.5368 | -757.0 | -637.4 | |
| 1.79 | 3.49 | 1.03 | 2.00 | -16.54 | 325.93 | -26.23 | 122.83 | 0.5063 | 934.2 | 756.5 | |
| 0.00 | 1.02 | 0.00 | 0.59 | -16.79 | 325.83 | -26.33 | 123.16 | 0.5094 | 824.0 | 684.3 | |
| 0.00 | 0.85 | 0.00 | 0.52 | -23.65 | 324.50 | -27.66 | 132.55 | 0.5795 | -811.0 | -678.4 | |
| 0.00 | 0.94 | 0.00 | 0.57 | -22.88 | 324.09 | -28.07 | 131.09 | 0.5774 | -769.0 | -685.5 | |
| 0.00 | 0.77 | 0.00 | 0.45 | -17.67 | 323.67 | -28.50 | 122.75 | 0.5427 | 742.0 | 607.8 | |
| 1.02 | 3.58 | 0.61 | 2.14 | -18.59 | 322.54 | -29.63 | 123.31 | 0.5629 | -842.3 | -719.5 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -17.94 | 322.48 | -29.68 | 122.24 | 0.5592 | -803.0 | -645.4 | |
| 0.00 | 2.30 | 0.00 | 1.38 | -18.31 | 322.27 | -29.90 | 122.66 | 0.5642 | -715.0 | -612.9 | |
| 0.00 | 1.36 | 0.00 | 0.87 | -22.31 | 318.99 | -33.18 | 126.11 | 0.6290 | -598.0 | -435.9 | |
| 0.00 | 2.21 | 0.00 | 1.39 | -20.13 | 318.90 | -33.26 | 122.94 | 0.6160 | -737.0 | -551.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
