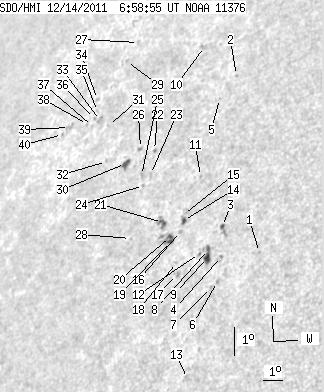

SDO HMI 2011-12-14 06:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.44 | 88.83 | 16.83 | 75.77 | 21.07 | 300.02 | -51.05 | 63.16 | 0.8141 | -156.6 | -129.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-12-14 06:58:55 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.02 | 0.00 | 0.77 | 19.11 | 305.69 | -45.38 | 63.43 | 0.7543 | -619.0 | -518.3 | |
| 0.00 | 0.94 | 0.00 | 0.79 | 24.82 | 302.10 | -48.97 | 58.01 | 0.8095 | -548.0 | -518.6 | |
| 1.96 | 5.28 | 1.54 | 4.13 | 19.95 | 303.69 | -47.39 | 63.18 | 0.7775 | -537.5 | -574.8 | |
| 0.00 | 1.36 | 0.00 | 1.05 | 19.01 | 304.00 | -47.07 | 64.22 | 0.7711 | -633.0 | -474.8 | |
| 0.00 | 0.77 | 0.00 | 0.65 | 24.07 | 301.65 | -49.42 | 59.05 | 0.8108 | -596.0 | -520.1 | |
| 0.00 | 1.87 | 0.00 | 1.44 | 18.22 | 304.11 | -46.97 | 65.16 | 0.7674 | -692.0 | -563.0 | |
| 0.00 | 1.79 | 0.00 | 1.38 | 18.04 | 303.90 | -47.18 | 65.47 | 0.7689 | -437.0 | -440.3 | |
| 1.53 | 10.56 | 1.20 | 8.29 | 19.23 | 303.32 | -47.76 | 64.20 | 0.7787 | -546.4 | -490.3 | |
| 5.11 | -8.00 | 4.00 | -8.00 | 18.98 | 303.37 | -47.71 | 64.49 | 0.7774 | -624.7 | 999999 | |
| 0.00 | 2.90 | 0.00 | 2.57 | 25.80 | 299.91 | -51.16 | 57.73 | 0.8315 | -222.0 | -287.8 | |
| 0.00 | 0.85 | 0.00 | 0.70 | 21.56 | 301.95 | -49.12 | 61.89 | 0.7995 | -526.0 | -462.7 | |
| 0.00 | 0.85 | 0.00 | 0.67 | 19.11 | 302.94 | -48.13 | 64.48 | 0.7820 | -586.0 | -484.8 | |
| 0.00 | 2.13 | 0.00 | 1.62 | 15.22 | 303.72 | -47.35 | 69.08 | 0.7622 | -120.0 | -287.7 | |
| 2.21 | 3.66 | 1.81 | 2.99 | 20.16 | 301.75 | -49.33 | 63.63 | 0.7969 | -614.8 | -522.5 | |
| 0.00 | 0.94 | 0.00 | 0.77 | 20.35 | 301.66 | -49.41 | 63.43 | 0.7983 | -348.0 | -380.9 | |
| 0.00 | 1.53 | 0.00 | 1.25 | 19.82 | 301.75 | -49.32 | 64.05 | 0.7958 | -653.0 | -551.4 | |
| 0.00 | 2.13 | 0.00 | 1.70 | 18.46 | 302.15 | -48.92 | 65.55 | 0.7877 | -577.0 | -515.1 | |
| 0.00 | 0.94 | 0.00 | 0.75 | 18.84 | 301.96 | -49.12 | 65.16 | 0.7908 | -600.0 | -547.4 | |
| 1.11 | 10.05 | 0.91 | 8.26 | 19.51 | 301.39 | -49.68 | 64.55 | 0.7982 | -723.3 | -414.0 | |
| 1.02 | -19.00 | 0.84 | -19.00 | 19.66 | 301.33 | -49.74 | 64.38 | 0.7993 | -686.2 | 999999 | |
| 3.07 | 6.98 | 2.55 | 5.82 | 20.11 | 300.74 | -50.33 | 64.04 | 0.8062 | -452.3 | -266.8 | |
| 0.00 | 1.36 | 0.00 | 1.19 | 22.42 | 299.21 | -51.86 | 61.85 | 0.8268 | -508.0 | -365.8 | |
| 0.00 | 2.04 | 0.00 | 1.77 | 21.65 | 299.40 | -51.67 | 62.68 | 0.8229 | -192.0 | -215.4 | |
| 0.00 | 1.28 | 0.00 | 1.11 | 21.30 | 299.22 | -51.85 | 63.14 | 0.8235 | -226.0 | -145.8 | |
| 0.00 | 1.96 | 0.00 | 1.71 | 21.63 | 298.95 | -52.12 | 62.86 | 0.8268 | 220.0 | 215.2 | |
| 0.00 | 2.04 | 0.00 | 1.82 | 22.50 | 298.44 | -52.63 | 62.02 | 0.8337 | -396.0 | -222.0 | |
| 0.00 | 1.19 | 0.00 | 1.16 | 25.98 | 296.17 | -54.90 | 58.83 | 0.8617 | 500.0 | 498.4 | |
| 0.00 | 0.26 | 0.00 | 0.22 | 19.62 | 299.35 | -51.72 | 65.07 | 0.8176 | -442.0 | -373.0 | |
| 0.00 | 1.02 | 0.00 | 0.99 | 25.35 | 295.91 | -55.16 | 59.60 | 0.8620 | 560.0 | 513.0 | |
| 4.43 | 5.28 | 3.98 | 4.75 | 22.02 | 297.90 | -53.17 | 62.74 | 0.8370 | 691.6 | 570.1 | |
| 0.00 | 1.02 | 0.00 | 0.97 | 23.26 | 296.25 | -54.82 | 61.83 | 0.8539 | 618.0 | 510.9 | |
| 0.00 | 0.77 | 0.00 | 0.71 | 22.10 | 296.83 | -54.25 | 62.98 | 0.8462 | 444.0 | 402.6 | |
| 0.00 | 4.34 | 0.00 | 4.17 | 23.43 | 295.69 | -55.38 | 61.81 | 0.8588 | 439.0 | 443.7 | |
| 0.00 | 0.85 | 0.00 | 0.84 | 24.12 | 295.07 | -56.00 | 61.23 | 0.8653 | 398.0 | 308.7 | |
| 0.00 | 0.94 | 0.00 | 0.91 | 23.73 | 295.33 | -55.74 | 61.59 | 0.8623 | 605.0 | 505.5 | |
| 0.00 | 0.94 | 0.00 | 0.91 | 23.50 | 295.30 | -55.77 | 61.85 | 0.8620 | 659.0 | 625.5 | |
| 0.00 | 0.94 | 0.00 | 0.91 | 23.24 | 295.35 | -55.72 | 62.13 | 0.8610 | 375.0 | 406.3 | |
| 0.00 | 0.94 | 0.00 | 0.91 | 23.31 | 295.02 | -56.05 | 62.14 | 0.8637 | 379.0 | 360.4 | |
| 0.00 | 3.92 | 0.00 | 3.92 | 23.23 | 294.02 | -57.05 | 62.52 | 0.8712 | 558.0 | 366.3 | |
| 0.00 | 1.19 | 0.00 | 1.20 | 23.01 | 293.75 | -57.32 | 62.84 | 0.8728 | 248.0 | 214.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
